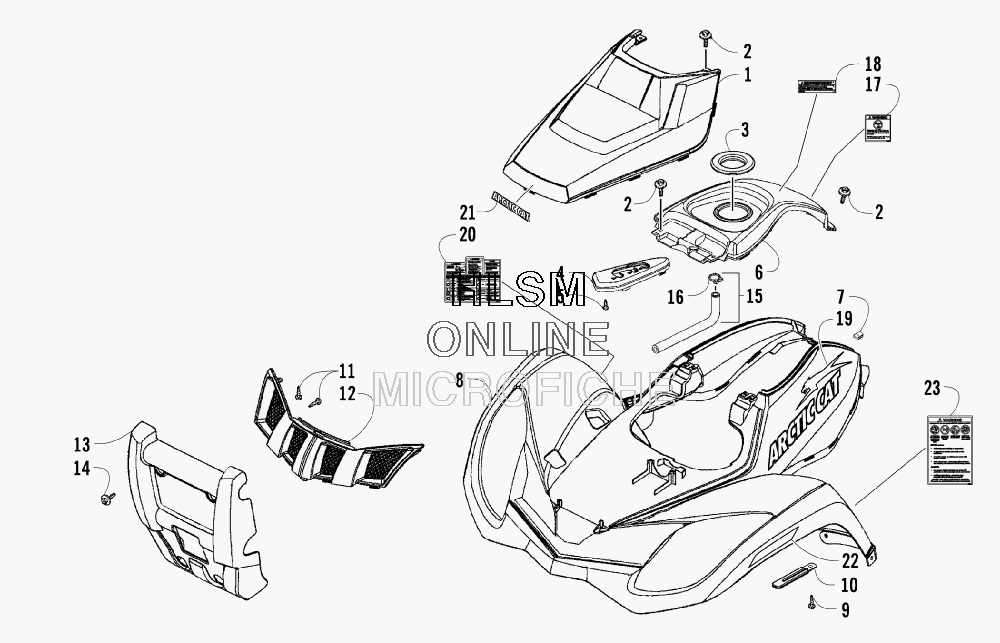

FRONT BODY PANEL ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13303-978 COVER, FRONT - (RED)COVER, FRONT - (RED)
-
23304-029 SCREW W/WASHERSCREW W/WASHER
-
33303-721 GROMMET, GAS TANK COVERGROMMET, GAS TANK COVER
-
43303-976 GUIDE, SHIFT HANDLEGUIDE, SHIFT HANDLE
-
53304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
63304-539 COVER, GAS TANK - (RED)COVER, GAS TANK - (RED)
-
73304-061 CLIP, U-NUTCLIP, U-NUT
-
83303-974 FENDER, FRONT - (RED)FENDER, FRONT - (RED)
-
93304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
103304-156 CLAMP, WIRECLAMP, WIRE
-
113304-645 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
123303-981 GRILLE, FRONT - (RED)GRILLE, FRONT - (RED)
-
133303-980 BUMPER, FRONT - (BLACK)BUMPER, FRONT - (BLACK)
-
143304-587 SCREW W/WASHERSCREW W/WASHER
-
153303-720 TUBE, FUEL DRAIN (INC. 16)TUBE, FUEL DRAIN (INC. 16)
-
163303-349 ...CLIP, TUBE...CLIP, TUBE
-
171411-804 DECAL, WARNING - AGEDECAL, WARNING - AGE
-
181411-577 DECAL, WARNING - NOT FOR HIGHWAYSDECAL, WARNING - NOT FOR HIGHWAYS
-
191411-636 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
191411-637 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
201411-173 DECAL, PRE-RIDE INSPECTIONDECAL, PRE-RIDE INSPECTION
-
211411-825 DECAL, GRAPHIC-FRONT-CLEARDECAL, GRAPHIC-FRONT-CLEAR
-
221411-180 DECAL, REFLECTOR - FRONT - RIGHTDECAL, REFLECTOR - FRONT - RIGHT
-
221411-181 DECAL, REFLECTOR - FRONT - LEFTDECAL, REFLECTOR - FRONT - LEFT
-
231411-932 DECAL, WARNING - GENERALDECAL, WARNING - GENERAL
