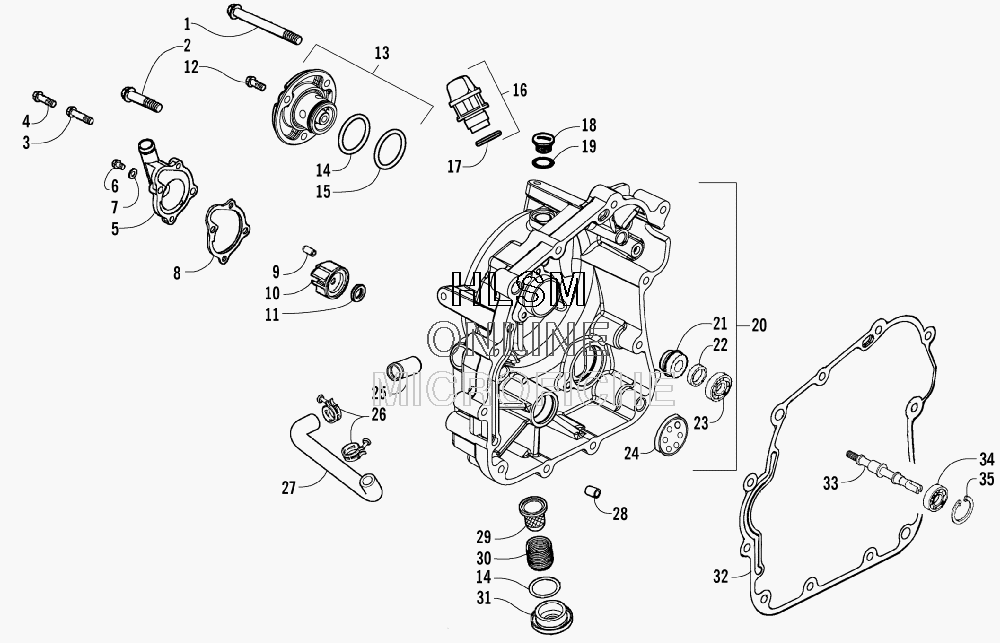

CRANKCASE COVER ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13304-192 BOLT FLANGE 6*125BOLT FLANGE 6*125
-
23303-387 BOLT FLANGE SH 6*45BOLT FLANGE SH 6*45
-
33303-385 BOLT FLANGE SH 6*28BOLT FLANGE SH 6*28
-
43303-619 BOLT FLANGE SH 6*22BOLT FLANGE SH 6*22
-
53303-752 COVER, WATER PUMPCOVER, WATER PUMP
-
63304-186 SCREW, CAPSCREW, CAP
-
73304-049 WASHERWASHER
-
83303-753 GASKET, WATER PUMPGASKET, WATER PUMP
-
93303-341 PIN, DOWELPIN, DOWEL
-
103303-750 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
113304-038 WASHERWASHER
-
123303-382 SCREW, CAPSCREW, CAP
-
133304-013 CAP, CRANKCASE COVER - ASSEMBLY (INC. ONE NO. 14 AND 15)CAP, CRANKCASE COVER - ASSEMBLY (INC. ONE NO. 14 AND 15)
-
143304-096 ...O-RING 30.8MM...O-RING 30.8MM
-
153304-098 ...O RING 27.4*2.1...O RING 27.4*2.1
-
163303-695 GAUGE, OIL LEVEL (INC. 17)GAUGE, OIL LEVEL (INC. 17)
-
173304-102 ...O-RING 18*3...O-RING 18*3
-
183304-012 CAPCAP
-
193304-099 O-RING 13.8*2.5O-RING 13.8*2.5
-
203303-631 COVER, CRANKCASE (INC. 21-25)COVER, CRANKCASE (INC. 21-25)
-
213303-751 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
223304-078 ...SEAL, OIL...SEAL, OIL
-
233304-068 ...BEARING...BEARING
-
243303-696 ...FINDER, OIL LEVEL...FINDER, OIL LEVEL
-
263304-165 CLAMP, HOSECLAMP, HOSE
-
273303-758 HOSE, WATERHOSE, WATER
-
283303-342 PIN, DOWELPIN, DOWEL
-
293303-691 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
303303-692 SPRING, OIL FILTERSPRING, OIL FILTER
-
313303-021 CAP, OIL FILTERCAP, OIL FILTER
-
323303-641 GASKETGASKET
-
333303-754 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
343304-193 BEARINGBEARING
-
353304-148 RING, RETAININGRING, RETAINING
