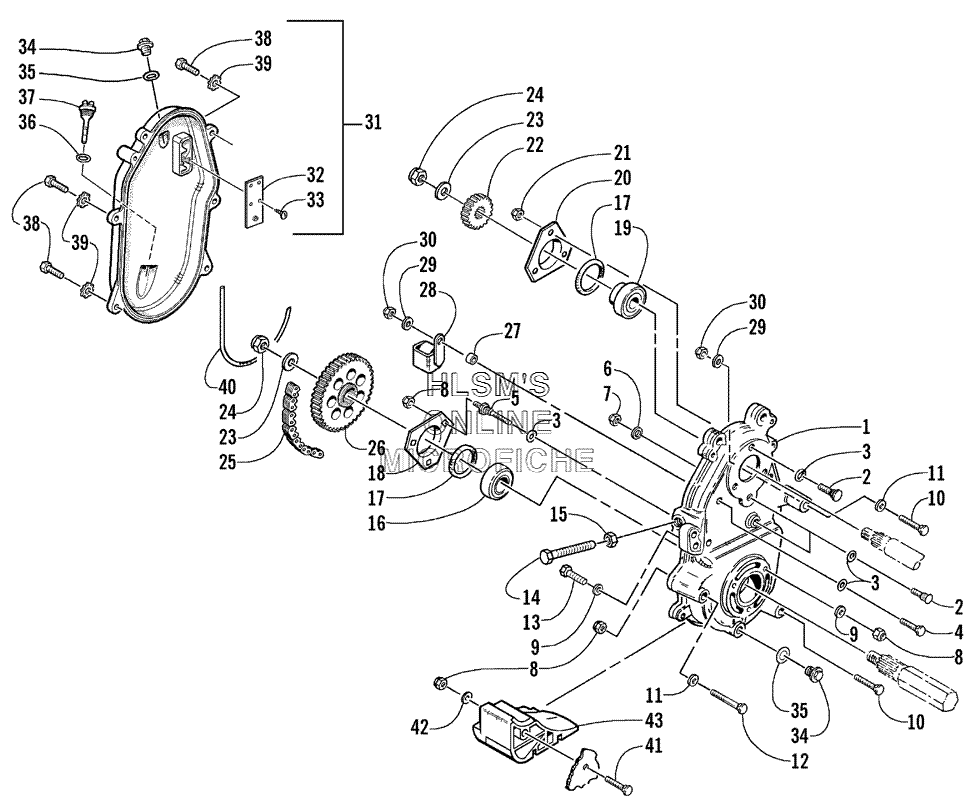

DRIVE/DROPCASE ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10702-448 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
88040-426 NUT, LOCKNUT, LOCK
-
98050-247 WASHERWASHER
-
108011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
118050-252 WASHERWASHER
-
128011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
138002-135 SCREW, CAPSCREW, CAP
-
141602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
150123-150 NUTNUT
-
161602-051 BEARING, 1 IN.BEARING, 1 IN.
-
170107-003 SEAL, O-RINGSEAL, O-RING
-
180602-932 PLATE, FLANGEPLATE, FLANGE
-
191602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
200602-198 PLATE, FLANGEPLATE, FLANGE
-
218041-426 NUT, LOCKNUT, LOCK
-
220602-973 SPROCKET (19 TEETH/15 WIDE)SPROCKET (19 TEETH/15 WIDE)
-
230623-231 WASHER, SPRINGWASHER, SPRING
-
240623-465 NUT, LOCKNUT, LOCK
-
250602-968 CHAIN, 70P (15 WIDE)CHAIN, 70P (15 WIDE)
-
260602-453 SPROCKET (40 TEETH)SPROCKET (40 TEETH)
-
270602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
280702-397 ARM, TIGHTENER, ASSY.ARM, TIGHTENER, ASSY.
-
298050-217 WASHERWASHER
-
300623-122 NUT, LOCKNUT, LOCK
-
317996-258 COVER, DROPCASE (INC. 32, 33 AND ONE NO. 34, 35)COVER, DROPCASE (INC. 32, 33 AND ONE NO. 34, 35)
-
321602-152 COVER, OIL VENTCOVER, OIL VENT
-
330623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
340623-293 PLUG, DROPCASEPLUG, DROPCASE
-
351602-213 O-RINGO-RING
-
360670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
370602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
388002-134 SCREW, CAPSCREW, CAP
-
398053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
400602-437 SEAL, DROPCASESEAL, DROPCASE
-
418011-137 BOLT, RIBBEDBOLT, RIBBED
-
428050-242 WASHERWASHER
-
430616-964 GUARD, DROPCASEGUARD, DROPCASE
