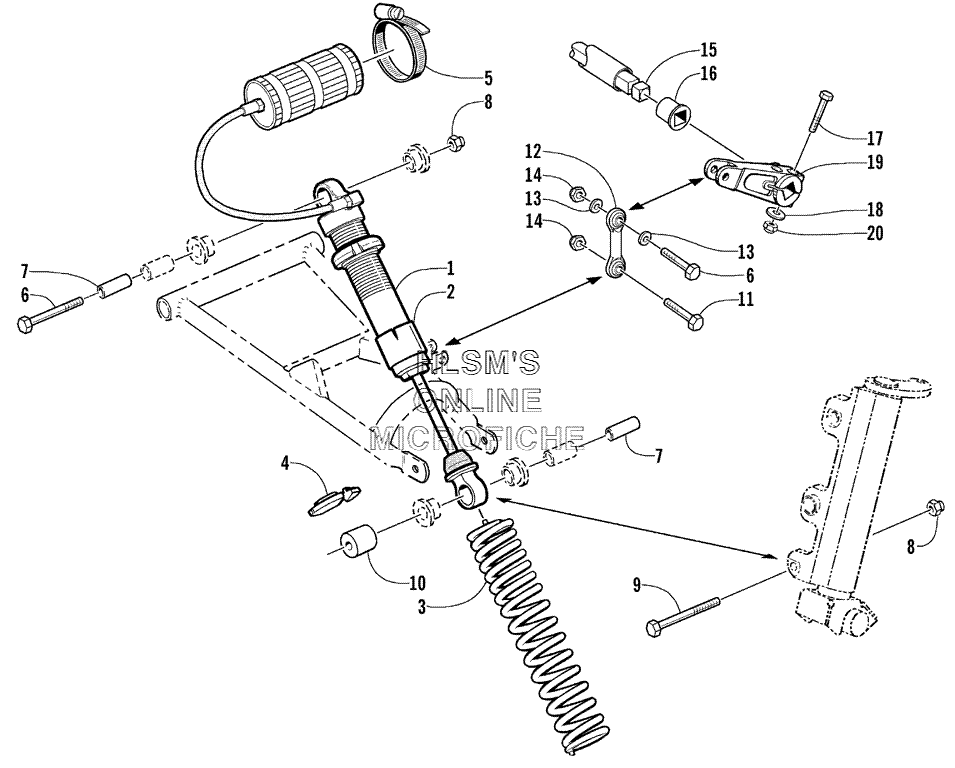

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
11703-030 SHOCK SUSPENSION (FRONT) (RIGHT)SHOCK SUSPENSION (FRONT) (RIGHT)
-
11703-031 SHOCK SUSPENSION (FRONT) (LEFT)SHOCK SUSPENSION (FRONT) (LEFT)
-
21603-271 SLEEVE, WEARSLEEVE, WEAR
-
31703-087 SPRING, COMPRESSION (YELLOW)SPRING, COMPRESSION (YELLOW)
-
41603-890 RETAINER, SPRINGRETAINER, SPRING
-
50214-025 CLAMPCLAMP
-
68002-226 SCREW, CAPSCREW, CAP
-
71603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
88040-486 NUT, LOCKNUT, LOCK
-
98002-232 SCREW, CAPSCREW, CAP
-
100603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
118002-225 SCREW, CAPSCREW, CAP
-
121603-414 LINK, SWAY BARLINK, SWAY BAR
-
138050-272 WASHERWASHER
-
148041-486 NUT, LOCKNUT, LOCK
-
150703-185 SWAY BARSWAY BAR
-
160603-151 BEARINGBEARING
-
178002-137 SCREW, CAPSCREW, CAP
-
188050-242 WASHERWASHER
-
190603-917 ARM, SWAY BARARM, SWAY BAR
-
208040-426 NUT, LOCKNUT, LOCK
Все узлы модели:
- A-ARM ASSY.
- AIR SILENCER ASSY.
- BELLY PAN AND FRONT BUMPER ASSY.
- BELT GUARD ASSY.
- CARBURETOR
- CONSOLE- SWITCHES- AND WIRING ASSY.
- COOLING FAN
- CRANKCASE AND CYLINDER
- CYLINDER COWLING
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSY.
- DRIVE/DROPCASE ASSY.
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FAN HOUSING
- FRONT FRAME AND FOOTREST ASSY.
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK AND COVER
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND INSTRUMENTS
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- INTAKE ASSY.
- MAGNETO
- OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSY.
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- RELATED ITEMS
- SEAT AND TAILLIGHT ASSY.
- • SHOCK ABSORBER AND SWAY BAR ASSY.
- SKI AND SPINDLE ASSY.
- SLIDE RAIL AND TRACK ASSY.
- STEERING POST ASSY.
- STEERING SUPPORT ASSY.
- TIE ROD ASSY.
- TUNNEL AND REAR BUMPER
