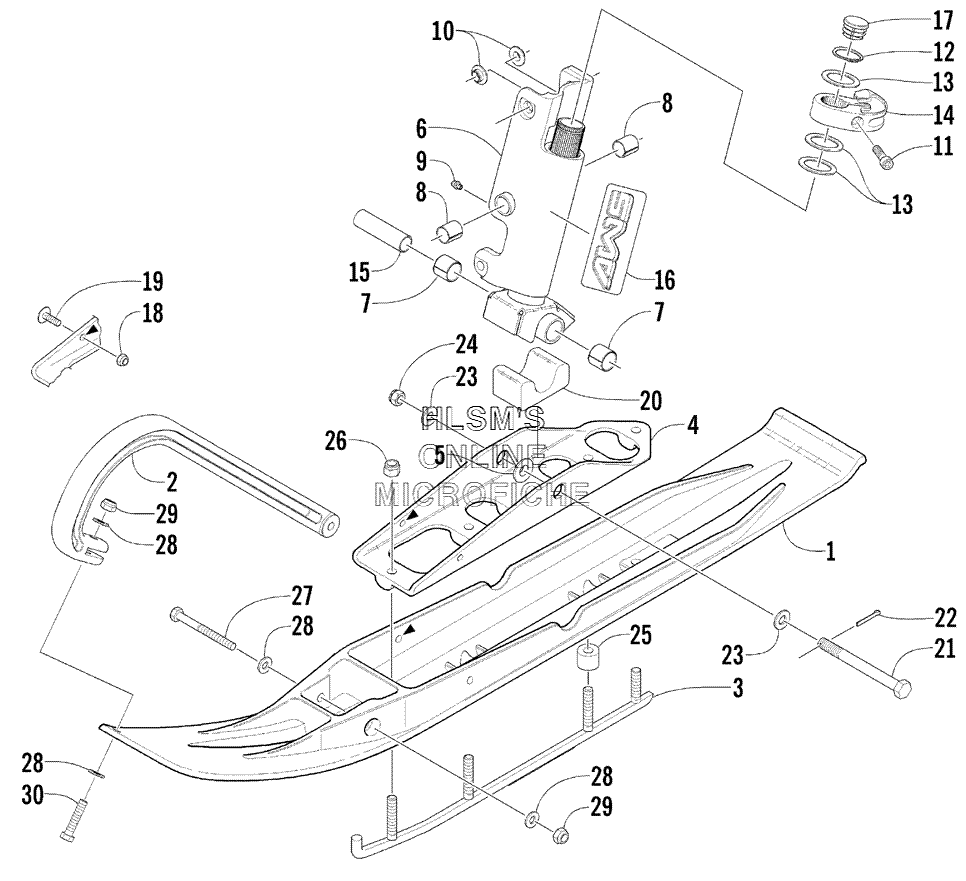

SKI AND SPINDLE ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10703-844 SKI, PLASTIC (GREEN)SKI, PLASTIC (GREEN)
-
20603-624 HANDLE, PLASTIC (BLACK)HANDLE, PLASTIC (BLACK)
-
30703-871 WEARBARWEARBAR
-
40703-901 SADDLE, SKI (PLATINUM) (INC. 5)SADDLE, SKI (PLATINUM) (INC. 5)
-
50603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
61703-158 SPINDLE, STEERING (RIGHT) (PLATINUM) (INC. 7, 14)SPINDLE, STEERING (RIGHT) (PLATINUM) (INC. 7, 14)
-
61703-159 SPINDLE, STEERING (LEFT) (PLATINUM) (INC. 7, 14)SPINDLE, STEERING (LEFT) (PLATINUM) (INC. 7, 14)
-
70603-158 BEARINGBEARING
-
80603-083 BEARINGBEARING
-
90623-010 FITTING, GREASEFITTING, GREASE
-
100603-647 INSERT, SPINDLEINSERT, SPINDLE
-
118005-584 SCREW, CAPSCREW, CAP
-
120623-796 RING, RETAININGRING, RETAINING
-
131603-203 WASHER, THRUSTWASHER, THRUST
-
141603-977 ARM, STEERINGARM, STEERING
-
150603-034 AXLE, SPINDLEAXLE, SPINDLE
-
164611-492 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
170623-831 CAP, SPINDLECAP, SPINDLE
-
188041-366 NUT, LOCKNUT, LOCK
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
200603-036 DAMPER, SKIDAMPER, SKI
-
210623-552 SCREW, CAPSCREW, CAP
-
220123-458 PIN, COTTERPIN, COTTER
-
230623-728 WASHERWASHER
-
240123-296 NUT, LOCKNUT, LOCK
-
251603-968 SPACERSPACER
-
268040-486 NUT, LOCKNUT, LOCK
-
278002-143 SCREW, CAPSCREW, CAP
-
288050-247 WASHERWASHER
-
298041-426 NUT, LOCKNUT, LOCK
-
308002-135 SCREW, CAPSCREW, CAP
