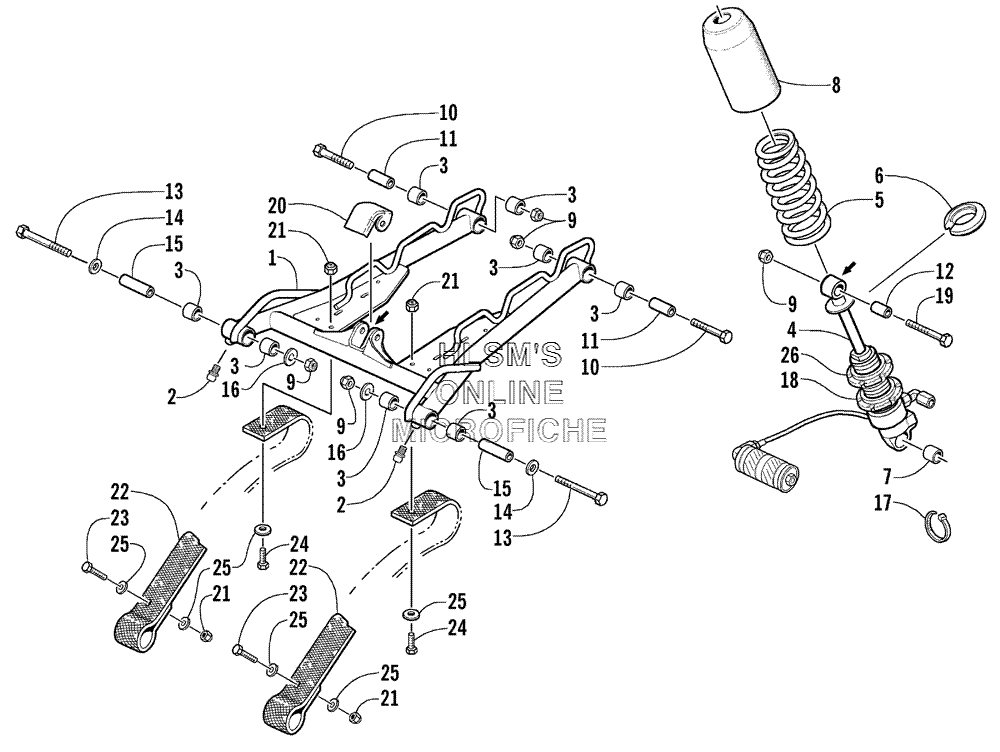

REAR SUSPENSION FRONT ARM ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10704-777 ARM SUSPENSION (FRONT) (INC. 2, 3)ARM SUSPENSION (FRONT) (INC. 2, 3)
-
20623-922 FITTING, GREASEFITTING, GREASE
-
30604-889 BUSHINGBUSHING
-
40704-744 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
51604-125 SPRING, COMPRESSIONSPRING, COMPRESSION
-
61603-890 RETAINER, SPRINGRETAINER, SPRING
-
71604-791 BUSHING, SHOCKBUSHING, SHOCK
-
80604-790 COVER, SHOCKCOVER, SHOCK
-
98040-486 NUT, LOCKNUT, LOCK
-
108002-228 SCREW, CAPSCREW, CAP
-
110104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
121603-531 AXLE, SHOCKAXLE, SHOCK
-
138002-230 SCREW, CAPSCREW, CAP
-
140623-044 WASHERWASHER
-
151604-162 AXLE ARM (FRONT)AXLE ARM (FRONT)
-
160114-197 WASHERWASHER
-
170123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
180704-798 NUT, LOCKING, SPRING RETAINER NUTNUT, LOCKING, SPRING RETAINER NUT
-
198002-229 SCREW, CAPSCREW, CAP
-
202604-112 GUIDE ARM (FRONT) (CENTER)GUIDE ARM (FRONT) (CENTER)
-
218040-366 NUT, LOCKNUT, LOCK
-
222604-001 STRAP, LIMITERSTRAP, LIMITER
-
238002-043 SCREW, CAPSCREW, CAP
-
248002-040 SCREW, CAPSCREW, CAP
-
250623-875 WASHERWASHER
-
260603-259 NUT, SPRING RETAINERNUT, SPRING RETAINER
