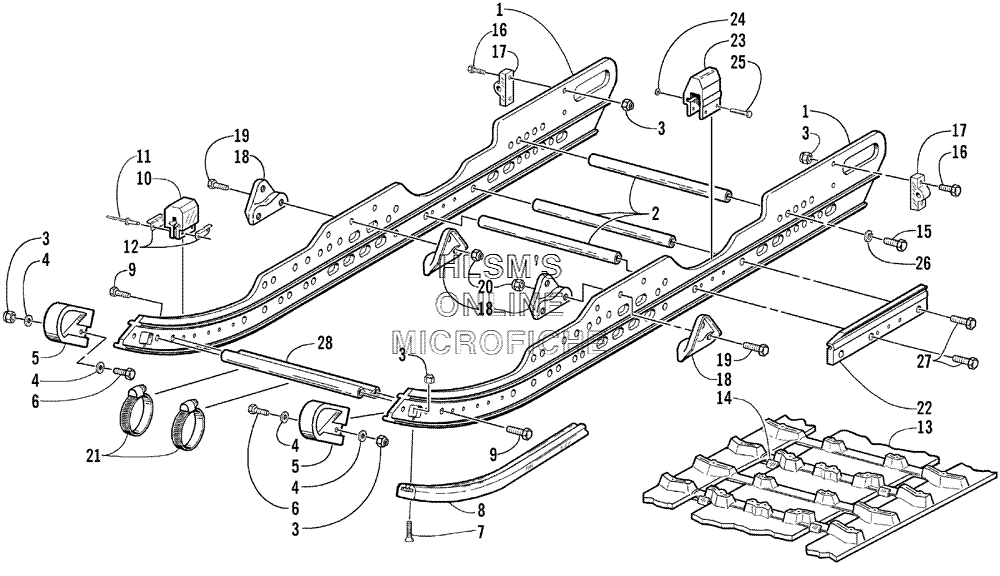

SLIDE RAIL AND TRACK ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
-7996-410 SUSPENSION, REAR ASSYSUSPENSION, REAR ASSY
-
10704-522 RAIL, FORMED (GREEN)RAIL, FORMED (GREEN)
-
11604-598 RAIL, FORMED (UNPAINTED)RAIL, FORMED (UNPAINTED)
-
20604-930 AXLE, INNERAXLE, INNER
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
80604-640 WEARSTRIP, SLIDE RAIL (BLACK)WEARSTRIP, SLIDE RAIL (BLACK)
-
98002-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVETRIVET
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
131602-154 TRACK ASSY. (INC. 14)TRACK ASSY. (INC. 14)
-
131602-176 TRACK ASSY. (INC. 14)TRACK ASSY. (INC. 14)
-
140602-488 CLIP, WEARCLIP, WEAR
-
158002-223 SCREW, CAPSCREW, CAP
-
168002-042 SCREW, CAPSCREW, CAP
-
170704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
182604-159 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
198002-131 SCREW, CAPSCREW, CAP
-
208040-426 NUT, LOCKNUT, LOCK
-
210214-025 CLAMPCLAMP
-
220704-773 BRACE, RAIL (RIGHT) (GREEN)BRACE, RAIL (RIGHT) (GREEN)
-
220704-774 BRACE, RAIL (LEFT) (GREEN)BRACE, RAIL (LEFT) (GREEN)
-
222604-110 BRACE, RAIL (RIGHT) (UNPAINTED)BRACE, RAIL (RIGHT) (UNPAINTED)
-
222604-111 BRACE, RAIL (LEFT) (UNPAINTED)BRACE, RAIL (LEFT) (UNPAINTED)
-
231604-487 PAD, SHOCKPAD, SHOCK
-
240623-773 NUT, PUSHNUT, PUSH
-
250623-772 RIVET, SOLIDRIVET, SOLID
-
268051-277 WASHERWASHER
-
278002-225 SCREW, CAPSCREW, CAP
-
281604-109 SUPPORT, RAILSUPPORT, RAIL
