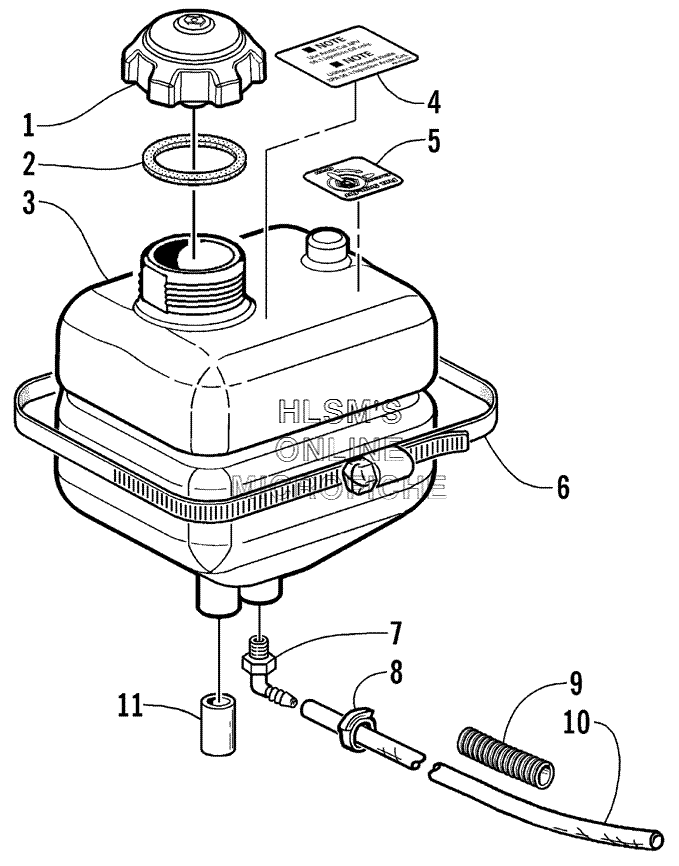

OIL TANK ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10670-871 CAP, TANK (INC. 2)CAP, TANK (INC. 2)
-
20109-733 SEAL, TANK CAPSEAL, TANK CAP
-
30670-917 TANK, OILTANK, OIL
-
41611-564 DECAL, OIL TANKDECAL, OIL TANK
-
54611-029 DECAL, FUEL SHUT, OFF VALVEDECAL, FUEL SHUT, OFF VALVE
-
60623-743 CLAMP, OIL TANKCLAMP, OIL TANK
-
70670-924 FITTING, ELBOW, 90°FITTING, ELBOW, 90°
-
80124-045 CLAMP, HOSECLAMP, HOSE
-
90619-776 LOOM, PROTECTIVE (5 FT)LOOM, PROTECTIVE (5 FT)
-
100610-015 HOSE, OIL/DRAIN (100 FT)HOSE, OIL/DRAIN (100 FT)
-
100610-016 HOSE, OIL/DRAIN (25 FT)HOSE, OIL/DRAIN (25 FT)
-
110619-519 SUPPORT, OIL TANKSUPPORT, OIL TANK
