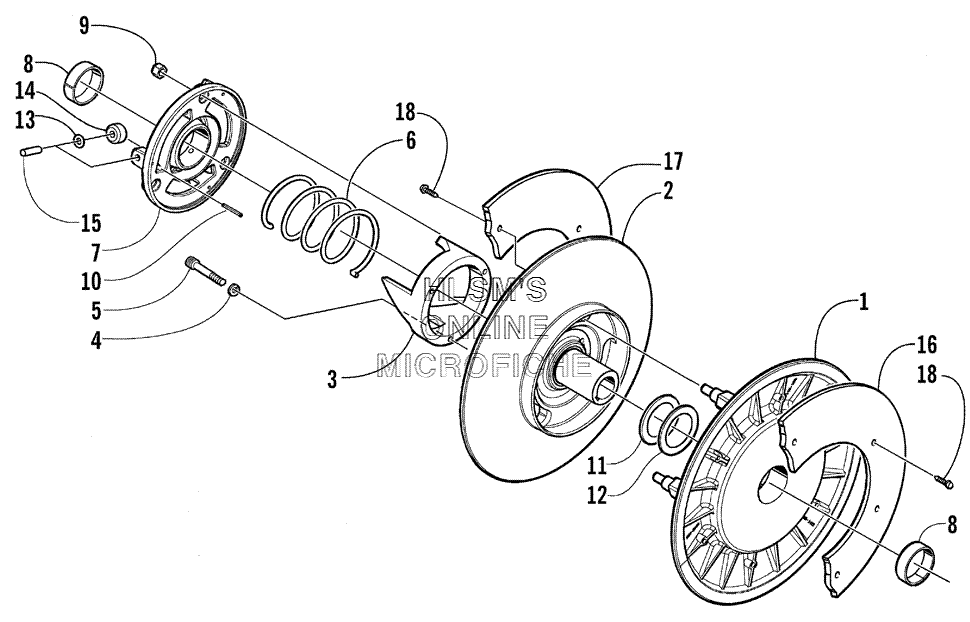

DRIVEN CLUTCH для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 8)SHEAVE, MOVABLE (INC. ONE NO. 8)
-
20748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30648-002 BRACKET, TORQUE, 53BRACKET, TORQUE, 53
-
30648-014 BRACKET, TORQUE, 49 (OVER 5, 000 FT ALT.)BRACKET, TORQUE, 49 (OVER 5, 000 FT ALT.)
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
60748-025 SPRING, DRIVEN CLUTCH, CAT GREENSPRING, DRIVEN CLUTCH, CAT GREEN
-
70748-018 PLATE, ROLLER, ASSY. (INC. ONE NO. 8, 10, AND 13, 15)PLATE, ROLLER, ASSY. (INC. ONE NO. 8, 10, AND 13, 15)
-
80648-009 BEARINGBEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
120623-852 WASHER, THRUST: 0.010 IN.WASHER, THRUST: 0.010 IN.
-
130648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
140648-123 ROLLER, CAMROLLER, CAM
-
150648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
160148-224 COVER, MOVABLE SHEAVECOVER, MOVABLE SHEAVE
-
170148-225 COVER, STATIONARY SHEAVECOVER, STATIONARY SHEAVE
-
180623-914 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
