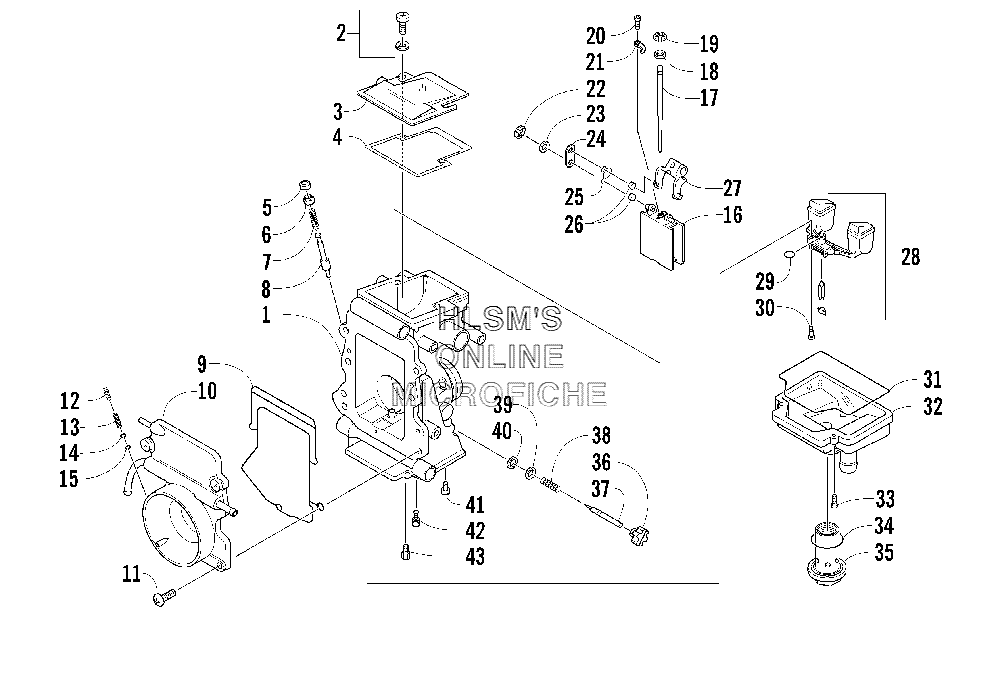

CARBURETOR - INTERNAL PARTS для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
-1670-569 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
26505-591 SCREW ASSEMBLYSCREW ASSEMBLY
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-068 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-069 GUIDE HOLDERGUIDE HOLDER
-
76506-070 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
86506-071 STARTER PLUNGERSTARTER PLUNGER
-
96506-209 GASKETGASKET
-
106506-348 FUNNEL ASSEMBLY (RIGHT)FUNNEL ASSEMBLY (RIGHT)
-
106506-347 FUNNEL ASSEMBLY (LEFT)FUNNEL ASSEMBLY (LEFT)
-
116505-980 SCREWSCREW
-
126506-220 SCREW, AIRSCREW, AIR
-
136506-217 SPRINGSPRING
-
146506-218 WASHERWASHER
-
154505-011 O-RINGO-RING
-
166506-120 VALVE, THROTTLE CA 3.0VALVE, THROTTLE CA 3.0
-
176506-228 JET NEEDLE 9EH6, 59, 3JET NEEDLE 9EH6, 59, 3
-
186505-552 WASHER, E, CLIPWASHER, E, CLIP
-
196505-628 E, CLIPE, CLIP
-
206506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
216506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
226506-051 E, CLIPE, CLIP
-
236506-052 WASHERWASHER
-
246506-039 PLATEPLATE
-
256506-040 CLIPCLIP
-
266506-053 BUSHING, CLIPBUSHING, CLIP
-
276506-047 LEVER ASSEMBLY (RIGHT)LEVER ASSEMBLY (RIGHT)
-
276506-043 LEVER ASSEMBLY (LEFT)LEVER ASSEMBLY (LEFT)
-
286506-121 FLOAT ASSEMBLY 1.5FLOAT ASSEMBLY 1.5
-
296506-100 O-RINGO-RING
-
306506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
316506-038 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
326506-036 CHAMBER, FLOAT, ASSEMBLYCHAMBER, FLOAT, ASSEMBLY
-
336506-072 SCREWSCREW
-
346505-185 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
356506-032 PLUG, DRAINPLUG, DRAIN
-
366506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
376506-145 SCREW, FUEL MIXTURE 2.0SCREW, FUEL MIXTURE 2.0
-
386506-079 SPRING, FUEL MIXTURE SCREWSPRING, FUEL MIXTURE SCREW
-
396506-078 WASHER, FUEL MIXTURE SCREWWASHER, FUEL MIXTURE SCREW
-
406506-080 WASHER, RUBBERWASHER, RUBBER
-
416506-101 STARTER JET 135STARTER JET 135
-
426505-047 PILOT JET 40PILOT JET 40
-
436505-038 MAIN JET 360MAIN JET 360
