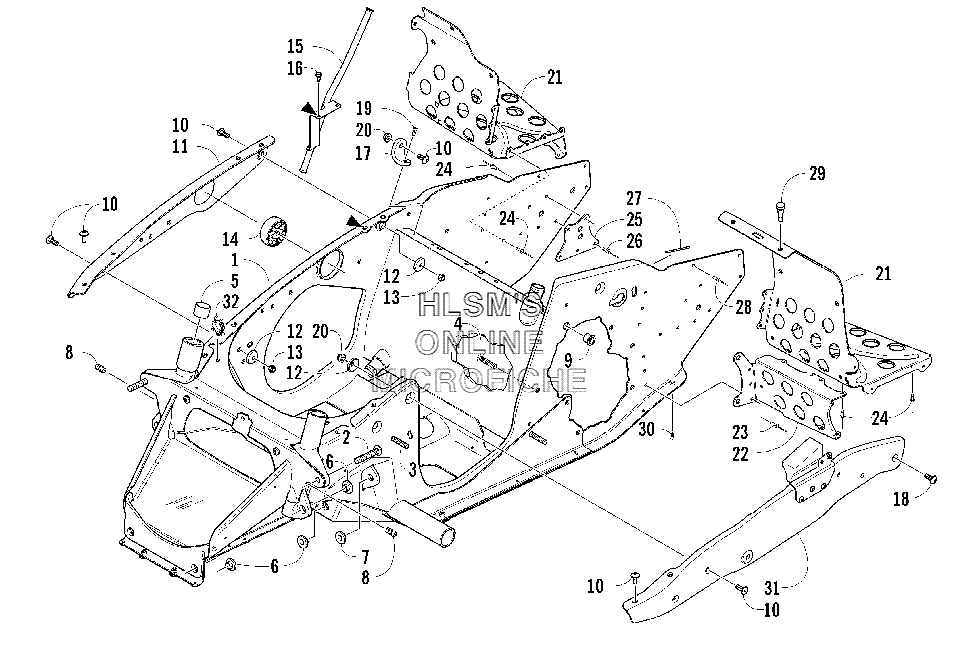

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
10707-959 CHASSIS, ASSEMBLY (INC. 2, 9)CHASSIS, ASSEMBLY (INC. 2, 9)
-
21623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-020 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
41623-359 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
50675-161 BEARINGBEARING
-
60607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
70607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
81623-010 FITTING, GREASEFITTING, GREASE
-
90623-581 INSERTINSERT
-
108017-580 SCREW, MACHINESCREW, MACHINE
-
113606-742 BRACE, SIDE PLATEBRACE, SIDE PLATE
-
120623-943 WASHER, CUPWASHER, CUP
-
138048-366 NUT, LOCKNUT, LOCK
-
140608-364 MOUNT, ENGINEMOUNT, ENGINE
-
150708-438 GUIDE, ROPEGUIDE, ROPE
-
160623-892 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
173606-634 SUPPORT, SIDE PLATESUPPORT, SIDE PLATE
-
188017-581 SCREW, MACHINESCREW, MACHINE
-
191623-115 SCREWSCREW
-
208047-366 NUT, LOCKNUT, LOCK
-
213606-466 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
213606-467 FOOTREST (LEFT)FOOTREST (LEFT)
-
220607-772 BRACKET, SUPPORT, FOOTREST (RIGHT)BRACKET, SUPPORT, FOOTREST (RIGHT)
-
220607-773 BRACKET, SUPPORT, FOOTREST (LEFT)BRACKET, SUPPORT, FOOTREST (LEFT)
-
231623-241 RIVETRIVET
-
240623-282 RIVETRIVET
-
252706-151 PLATE, BACKINGPLATE, BACKING
-
260623-341 RIVETRIVET
-
270706-371 TRIMTRIM
-
281623-130 RIVETRIVET
-
293606-178 BUMPERBUMPER
-
301623-018 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
312706-789 BRACE, SIDE PLATEBRACE, SIDE PLATE
-
321623-171 CLIPCLIP
