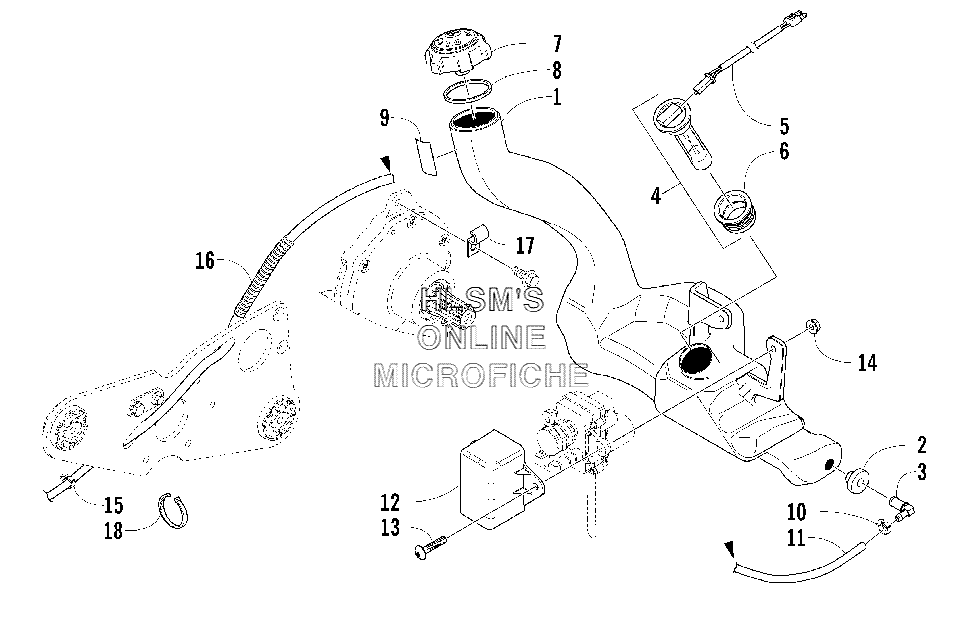

OIL TANK ASSEMBLY для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
11670-673 TANK, OIL (INC. 2, 3)TANK, OIL (INC. 2, 3)
-
21670-325 GROMMETGROMMET
-
31670-324 FITTING, ELBOWFITTING, ELBOW
-
40609-683 SENSOR, LOW OIL, ASSEMBLY (INC. 5, 6)SENSOR, LOW OIL, ASSEMBLY (INC. 5, 6)
-
50609-639 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
60609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
71670-365 CAP, OIL TANK (INC. 8)CAP, OIL TANK (INC. 8)
-
80109-733 SEAL, CAP, OIL TANKSEAL, CAP, OIL TANK
-
94611-532 DECAL, OIL TANKDECAL, OIL TANK
-
100623-063 CLAMP, HOSECLAMP, HOSE
-
110610-015 HOSE, OIL (100 FT)HOSE, OIL (100 FT)
-
110610-016 HOSE, OIL (25 FT)HOSE, OIL (25 FT)
-
122606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
138017-584 SCREW, CAPSCREW, CAP
-
148048-366 NUT, LOCKNUT, LOCK
-
150124-045 CLAMP, HOSECLAMP, HOSE
-
160716-558 LOOM, PROTECTIVE (10 FT)LOOM, PROTECTIVE (10 FT)
-
171623-390 CLAMP, RETAININGCLAMP, RETAINING
-
180123-903 CABLE TIE, 11.5 IN.CABLE TIE, 11.5 IN.
