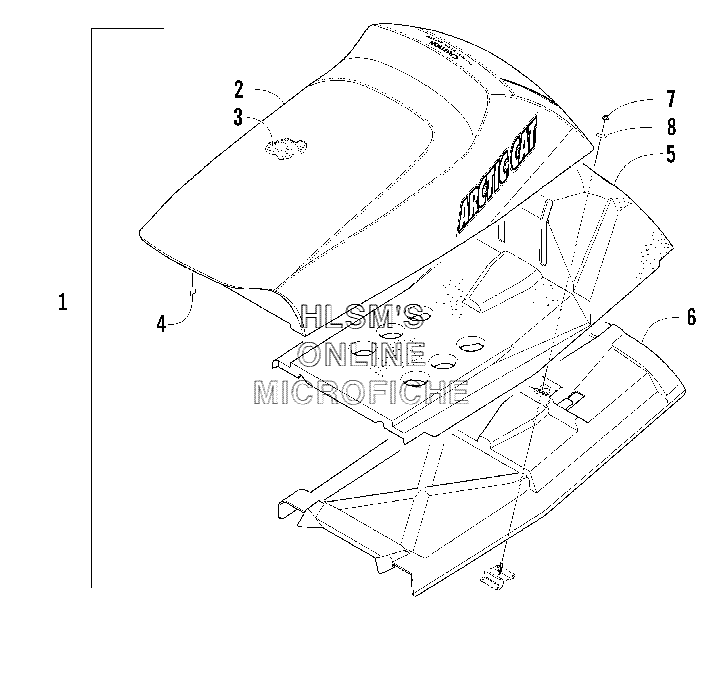

SEAT ASSEMBLY для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
17998-093 COMPLETE SEAT ASSEMBLY (INC. 2, 6)COMPLETE SEAT ASSEMBLY (INC. 2, 6)
-
22706-718 COVER, SEATCOVER, SEAT
-
30717-196 FOAM, SEAT (UPPER)FOAM, SEAT (UPPER)
-
40624-528 STAPLESTAPLE
-
50617-438 FOAM, SEAT (LOWER)FOAM, SEAT (LOWER)
-
62606-907 BASE, SEATBASE, SEAT
-
78048-366 NUT, LOCKNUT, LOCK
-
80623-875 WASHER, CUPWASHER, CUP
