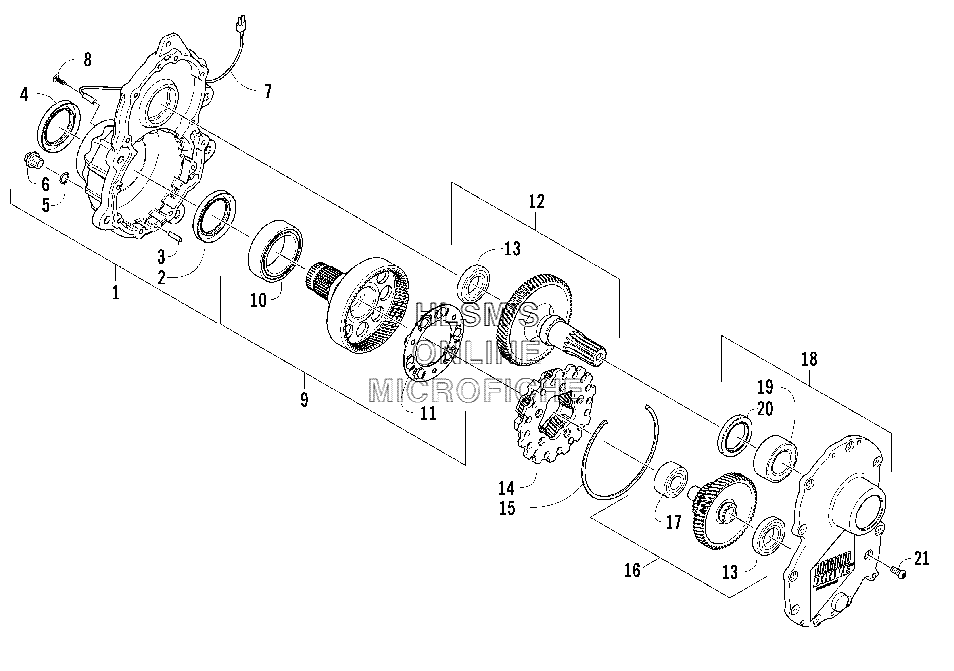

GEARCASE ASSEMBLY для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
-0702-667 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
10702-660 GEARCASE (INC. 2, 6)GEARCASE (INC. 2, 6)
-
21602-344 SEAL, OILSEAL, OIL
-
31602-345 PIN, DOWELPIN, DOWEL
-
41602-766 SEAL, OILSEAL, OIL
-
51602-213 O-RINGO-RING
-
60623-293 PLUG, GEARCASEPLUG, GEARCASE
-
70630-176 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
81623-343 CLIP, RETAININGCLIP, RETAINING
-
90702-675 GEAR, RING (76 TEETH) (INC. 10, 11)GEAR, RING (76 TEETH) (INC. 10, 11)
-
101602-318 BEARINGBEARING
-
111602-745 RETAINER, MAGNETRETAINER, MAGNET
-
120702-688 SHAFT, INPUT (57 TEETH) (INC. ONE NO. 13)SHAFT, INPUT (57 TEETH) (INC. ONE NO. 13)
-
131602-340 BEARINGBEARING
-
141602-349 GEAR, PLANETARY, 5 PINIONGEAR, PLANETARY, 5 PINION
-
151602-731 RING, RETAINING, PLANETARY GEARRING, RETAINING, PLANETARY GEAR
-
160702-712 GEAR, TRANSFER (63/34 TEETH) (INC. ONE NO. 13 AND 17)GEAR, TRANSFER (63/34 TEETH) (INC. ONE NO. 13 AND 17)
-
171602-348 BEARINGBEARING
-
180702-684 COVER, GEARCASE (INC. 19, 20)COVER, GEARCASE (INC. 19, 20)
-
191602-341 BEARINGBEARING
-
201602-342 SEAL, OILSEAL, OIL
-
211623-075 SCREW, MACHINESCREW, MACHINE
-
-4639-025 FLUID, GEARCASE, CASEFLUID, GEARCASE, CASE
