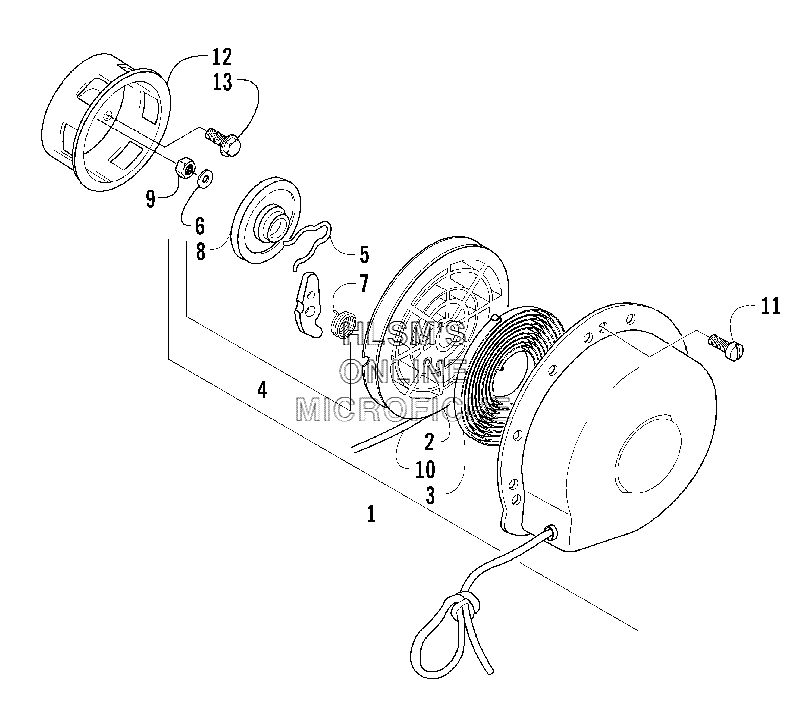

RECOIL STARTER для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
13006-915 STARTER ASSEMBLY (INC. 2, 10)STARTER ASSEMBLY (INC. 2, 10)
-
23003-179 ROLLER, STARTERROLLER, STARTER
-
33002-921 SPRINGSPRING
-
43006-457 RATCHET SET (INC. 5, 7)RATCHET SET (INC. 5, 7)
-
83006-475 PLATE, FRICTIONPLATE, FRICTION
-
93006-456 NUTNUT
-
103006-889 ROPE, STARTERROPE, STARTER
-
113004-383 SCREW, CAPSCREW, CAP
-
123006-522 PULLEY, STARTERPULLEY, STARTER
-
133004-705 SCREW, CAPSCREW, CAP
