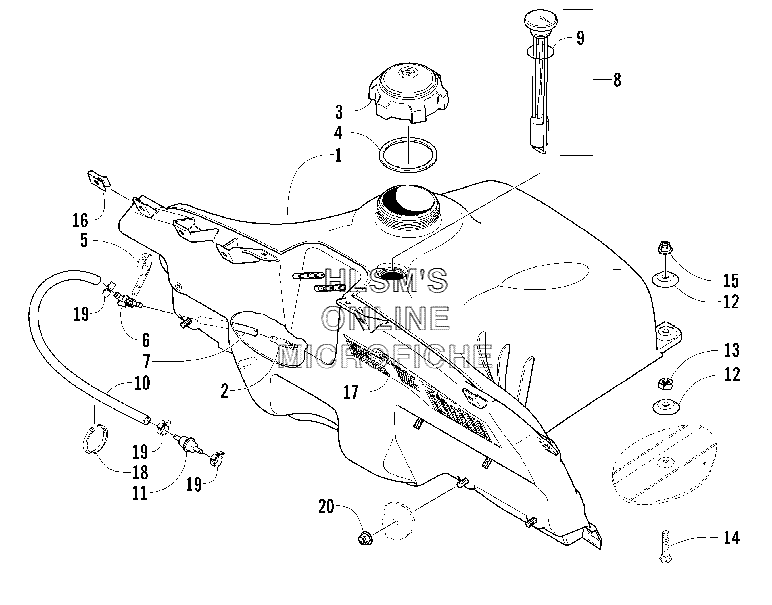

GAS TANK ASSEMBLY для Arctic Cat F5 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
10770-625 TANK, GAS (INC. 2, 9)TANK, GAS (INC. 2, 9)
-
20510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
31670-447 CAP, GAS TANK (INC. 4)CAP, GAS TANK (INC. 4)
-
41670-511 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
50670-289 TAPE, TEFLONTAPE, TEFLON
-
61670-321 OUTLET, GAS TANKOUTLET, GAS TANK
-
70610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
70610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
81670-523 GAUGE, GAS W/SEAL (INC. 9)GAUGE, GAS W/SEAL (INC. 9)
-
90470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
100610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
100610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
111670-166 FILTER, INNER, LINE FUELFILTER, INNER, LINE FUEL
-
120123-765 WASHER, CUPWASHER, CUP
-
138041-366 NUT, LOCKNUT, LOCK
-
148011-041 BOLT, CARRIAGEBOLT, CARRIAGE
-
158048-366 NUT, FLANGENUT, FLANGE
-
160623-427 NUT, SPEEDNUT, SPEED
-
176611-528 DECAL, JET CHARTDECAL, JET CHART
-
180123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
190124-045 CLAMP, HOSECLAMP, HOSE
-
208047-366 NUT, FLANGENUT, FLANGE
