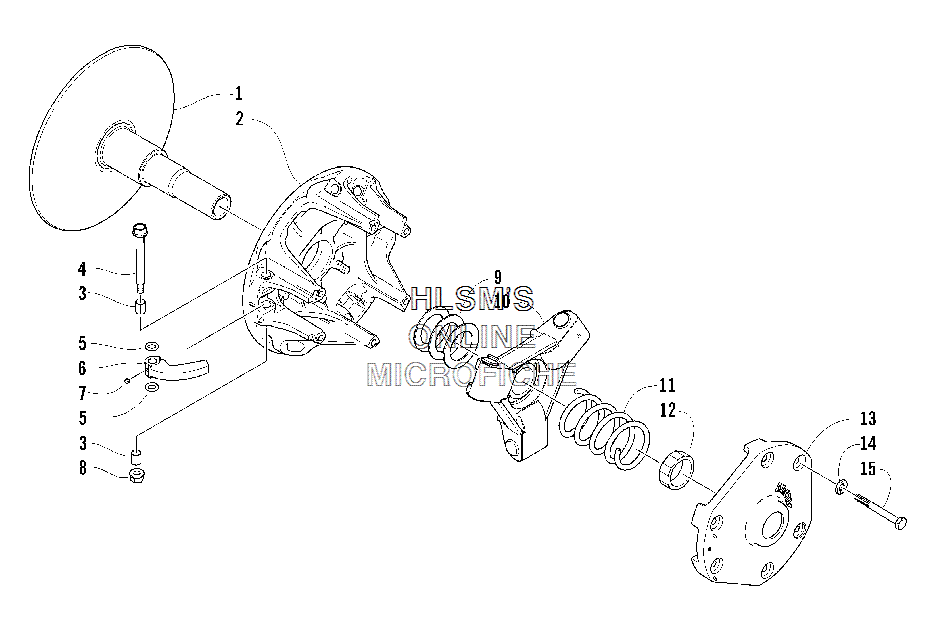

DRIVE CLUTCH для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
310725-399 DRIVE CLUTCH ASSY.DRIVE CLUTCH ASSY.
-
313639-599 CAM ARM KIT (INC. 3, 5 AND 7, 8)CAM ARM KIT (INC. 3, 5 AND 7, 8)
-
310746-124 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
10646-359 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-131 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARINGBEARING
-
40646-344 PIN, CAM ARMPIN, CAM ARM
-
51602-446 O-RINGO-RING
-
60746-689 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
60746-715 ARM, CAM (INC. 7/0, 3, 000 FT ALT.)ARM, CAM (INC. 7/0, 3, 000 FT ALT.)
-
60746-710 ARM, CAM (INC. 7/3, 6, 000 FT ALT.)ARM, CAM (INC. 7/3, 6, 000 FT ALT.)
-
60746-699 ARM, CAM (INC. 7/OVER 9, 000 FT ALT.)ARM, CAM (INC. 7/OVER 9, 000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-265 WASHER, SPACERWASHER, SPACER
-
100746-115 SPIDER ASSY.SPIDER ASSY.
-
110646-373 SPRING, DRIVE CLUTCH (TITANIUM) YELLOWSPRING, DRIVE CLUTCH (TITANIUM) YELLOW
-
120646-140 NUT, JAM-SPIDERNUT, JAM-SPIDER
-
130746-113 COVERCOVER
-
148051-212 WASHER, LOCK, SPRINGWASHER, LOCK, SPRING
-
151623-085 SCREW, CAP-HH 1/4-20X2.50 GD 8SCREW, CAP-HH 1/4-20X2.50 GD 8
Все узлы модели:
- A-ARM ASSY.
- AIR SILENCER ASSY.
- BATTERY- SOLENOID- AND CABLES (OPTIONAL)
- BELLY PAN AND FRONT BUMPER ASSY.
- BELT GUARD ASSY.
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CARBURETOR AND FUEL PUMP ASSY.
- CONSOLE AND SWITCH ASSY.
- COOLING ASSY.
- CRANKCASE ASSY.
- CYLINDER AND HEAD ASSY.
- • DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSY.
- DRIVE/REVERSE DROPCASE ASSY. (OPTIONAL)
- DRIVEN CLUTCH
- DROPCASE CHAIN TENSION ASSY. (OPTIONAL)
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FLEX-DRIVE STARTER MOTOR ASSY. (OPTIONAL)
- FRONT FRAME AND FOOTREST ASSY.
- FRONT SUSPENSION SHOCK ABSORBER
- FRONT SUSPENSION SHOCK ABSORBER ASSY.
- GAS TANK ASSY.
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- MAGNETO
- OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSY.
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSY.
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSY. (OPTIONAL)
- SEAT- RACK- AND TAILLIGHT ASSY.
- SERVOMOTOR ASSY.
- SKI AND SPINDLE ASSY.
- SLIDE RAIL AND TRACK ASSY.
- STEERING POST ASSY.
- TIE ROD ASSY.
- TUNNEL AND REAR BUMPER
- WATER PUMP/WATER MANIFOLD ASSY.
