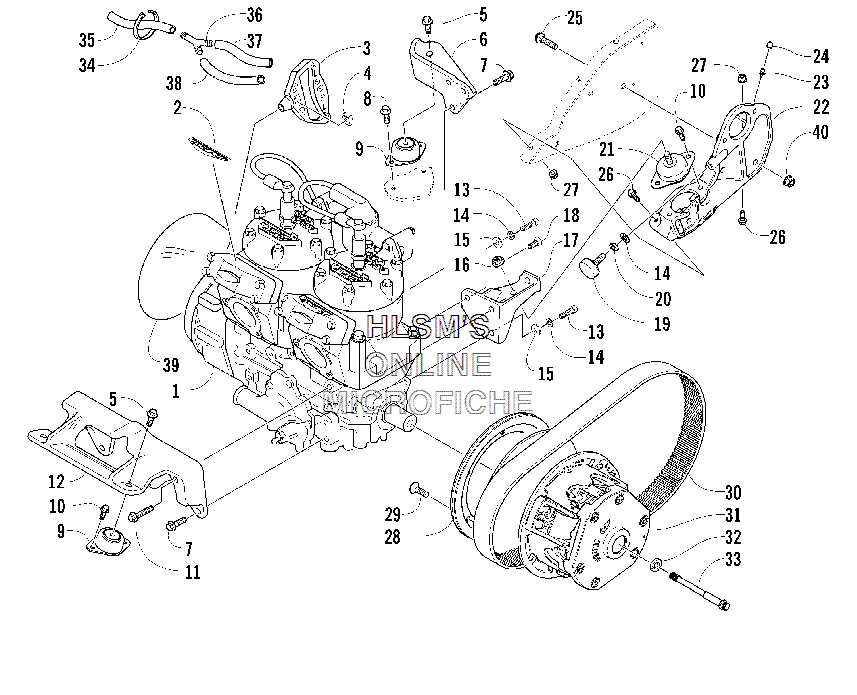

ENGINE AND RELATED PARTS для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10662-380 ENGINE, AA86L4ENGINE, AA86L4
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30636-363 HANDLE, RECOILHANDLE, RECOIL
-
40606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
58020-220 SCREW, CAP-HFH 3/8-16 X 0.750 ZSCREW, CAP-HFH 3/8-16 X 0.750 Z
-
60708-123 BRACKET, MOUNTING, ENGINE (RIGHT), REARBRACKET, MOUNTING, ENGINE (RIGHT), REAR
-
78020-223 SCREW, CAP-HFH 3/8-16 X 1.125 GSCREW, CAP-HFH 3/8-16 X 1.125 G
-
88020-130 SCREW, CAP-HFH 5/16-18 X0.75 G5SCREW, CAP-HFH 5/16-18 X0.75 G5
-
90608-347 MOUNT, ENGINEMOUNT, ENGINE
-
100623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118020-228 SCREW, CAPSCREW, CAP
-
120708-116 BRACKET, MOUNTING, ENGINE, FRONTBRACKET, MOUNTING, ENGINE, FRONT
-
138005-674 SCREW, CAP-HSH 3/8-16X1.25 Z & YSCREW, CAP-HSH 3/8-16X1.25 Z & Y
-
148050-272 WASHER, FLAT- 3/8 X .734 X .063WASHER, FLAT- 3/8 X .734 X .063
-
158051-277 WASHER, LOCKWASHER, LOCK
-
168047-486 NUT, LOCKNUT, LOCK
-
170708-137 BRACKET, MOUNTING, ENGINE (LEFT), REARBRACKET, MOUNTING, ENGINE (LEFT), REAR
-
180623-881 SCREW, MACHINESCREW, MACHINE
-
190608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
200123-191 NUTNUT
-
210708-145 MOUNT, ENGINE, ASSY.MOUNT, ENGINE, ASSY.
-
220708-400 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 23, 24)BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 23, 24)
-
230623-899 FITTING, GREASEFITTING, GREASE
-
240623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
258020-224 SCREW, CAP-HFH 3/8-16 X 1.250 ZSCREW, CAP-HFH 3/8-16 X 1.250 Z
-
268020-040 SCREW, CAP-HFH 1/4-20 X 0.750 ZSCREW, CAP-HFH 1/4-20 X 0.750 Z
-
278048-366 NUT, LOCKNUT, LOCK
-
280645-410 RING, CLUTCH DAMPERRING, CLUTCH DAMPER
-
291623-128 SCREW, MACHINESCREW, MACHINE
-
300627-020 BELT, DRIVEBELT, DRIVE
-
310725-399 CLUTCH, DRIVE-TI YEL/GRN 69.0-ACLUTCH, DRIVE-TI YEL/GRN 69.0-A
-
320623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
330623-913 BOLT, CLUTCHBOLT, CLUTCH
-
340123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
350610-535 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
360670-875 Y, FITTINGY, FITTING
-
370610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
380610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
391670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
408048-486 NUT, LOCKNUT, LOCK
