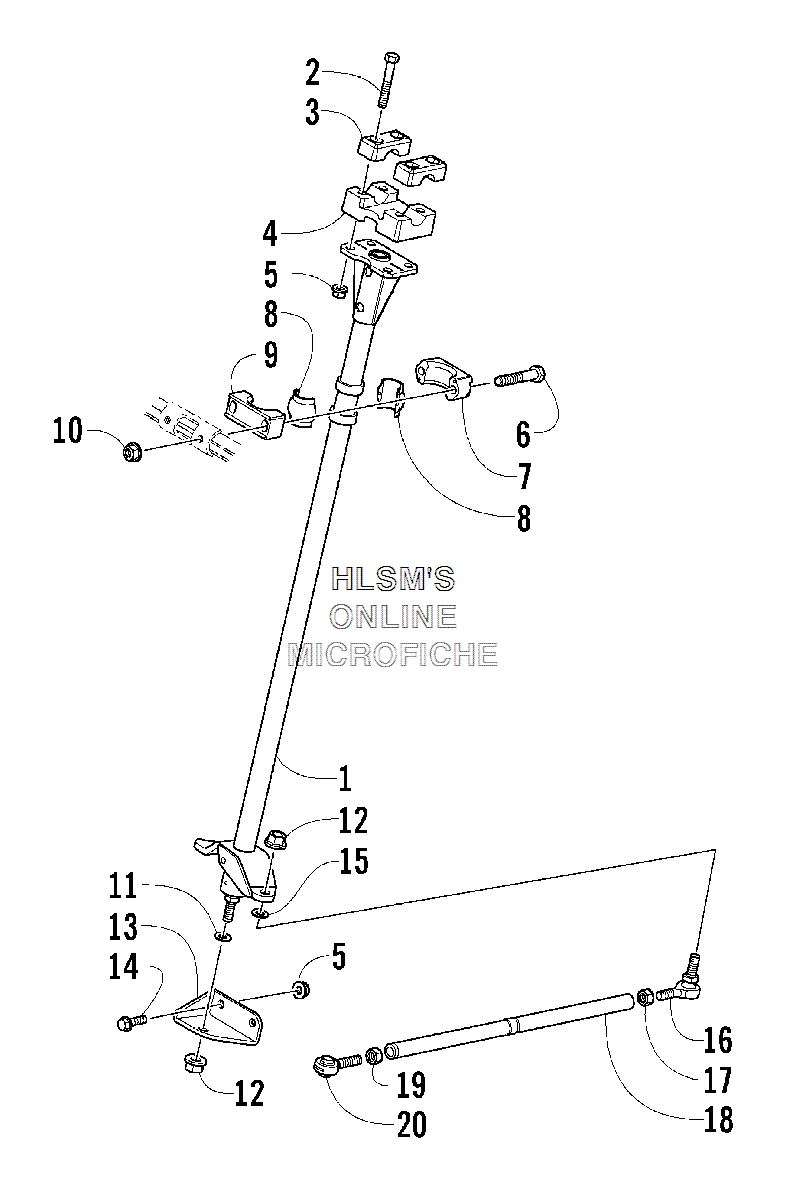

STEERING POST ASSY. для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10705-841 POST, STEERINGPOST, STEERING
-
28002-138 SCREW, CAP-HH 5/16-18 X2.25 G5SCREW, CAP-HH 5/16-18 X2.25 G5
-
30605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
40605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
58048-426 NUT, LOCKNUT, LOCK
-
60623-814 SCREW, CAP-1/2HH 1/4 - 20 X 3.0SCREW, CAP-1/2HH 1/4 - 20 X 3.0
-
70605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
80405-020 BEARING, HALFBEARING, HALF
-
90605-147 HOUSING, BEARINGHOUSING, BEARING
-
108048-366 NUT, LOCKNUT, LOCK
-
110623-044 WASHER, FLAT HARD .375 X.875WASHER, FLAT HARD .375 X.875
-
120623-025 NUT, LOCKNUT, LOCK
-
130705-407 PLATE, BACKINGPLATE, BACKING
-
148020-130 SCREW, CAP-HFH 5/16-18 X0.75 G5SCREW, CAP-HFH 5/16-18 X0.75 G5
-
150623-985 WASHER, FLAT-HARD-.375 X .875WASHER, FLAT-HARD-.375 X .875
-
160605-423 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
-
170123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
180605-626 TUBE, TIE RODTUBE, TIE ROD
-
190623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
200605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
