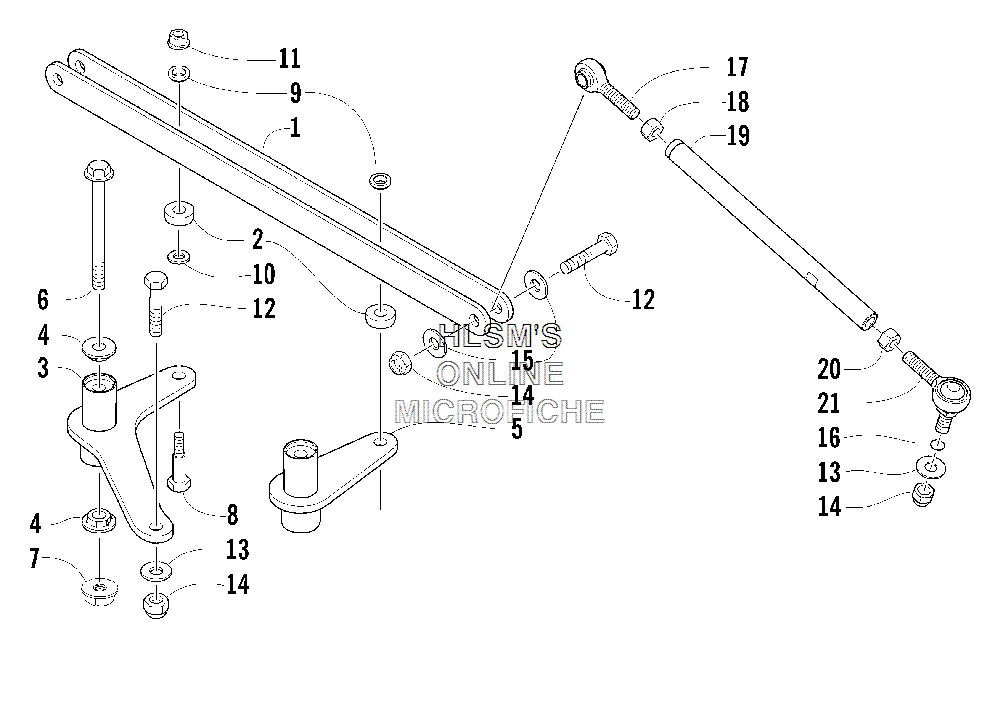

TIE ROD ASSY. для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10705-370 DRAG LINK (INC. 2)DRAG LINK (INC. 2)
-
20605-541 BEARINGBEARING
-
31705-058 ARM, STEERING, ASSY.ARM, STEERING, ASSY.
-
40605-540 INSERTINSERT
-
51705-060 ARM, STEERING, IDLER, ASSY.ARM, STEERING, IDLER, ASSY.
-
68020-234 SCREW, CAP-HFH 3/8-16 X 4.00 Z &SCREW, CAP-HFH 3/8-16 X 4.00 Z &
-
78048-486 NUT, LOCKNUT, LOCK
-
80623-920 SCREW, CAP HH-ROLLER DRAGLINKSCREW, CAP HH-ROLLER DRAGLINK
-
90605-522 AXLE, DRAG LINKAXLE, DRAG LINK
-
108050-272 WASHER, FLAT- 3/8 X .734 X .063WASHER, FLAT- 3/8 X .734 X .063
-
118048-426 NUT, LOCKNUT, LOCK
-
128004-226 SCREW, CAP-HH 3/8-24X1.75 G5 Z &SCREW, CAP-HH 3/8-24X1.75 G5 Z &
-
130623-044 WASHER, FLAT HARD .375 X.875WASHER, FLAT HARD .375 X.875
-
140623-025 NUT, LOCKNUT, LOCK
-
158050-277 WASHER, FLAT- 3/8 X 1.000 X .06WASHER, FLAT- 3/8 X 1.000 X .06
-
160605-014 O-RINGO-RING
-
170605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
180623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
190605-312 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
200123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
210605-511 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
