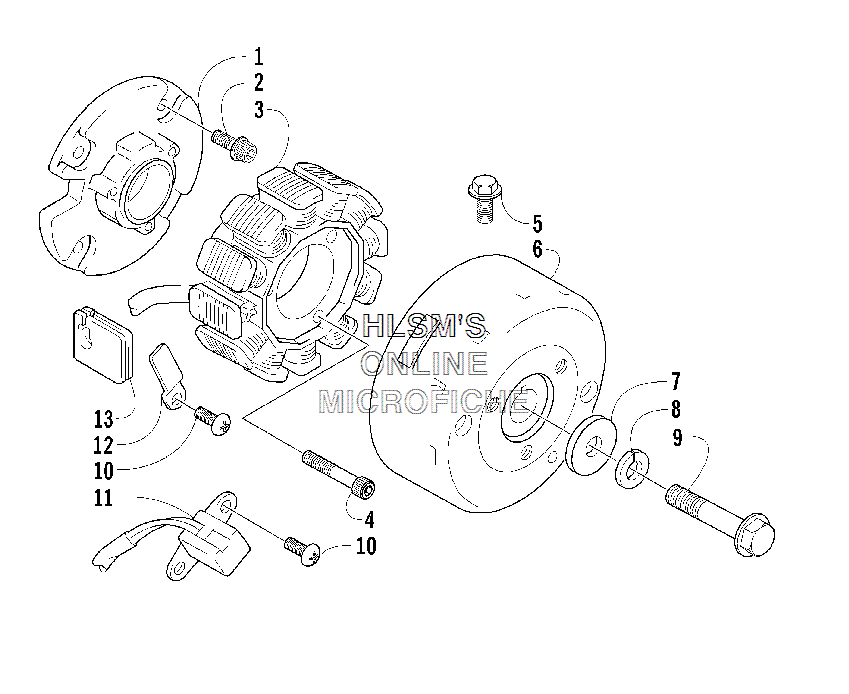

MAGNETO для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
13005-888 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
23004-378 BOLT, 6X16BOLT, 6X16
-
33005-784 STATOR ASSY.STATOR ASSY.
-
43005-433 BOLT, MAGNETO STATOR-5X35BOLT, MAGNETO STATOR-5X35
-
53004-338 BOLT, 6X12BOLT, 6X12
-
63005-887 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
73005-987 WASHERWASHER
-
83004-362 WASHER, LOCKWASHER, LOCK
-
93006-476 BOLTBOLT
-
103004-706 SCREW, 5X12SCREW, 5X12
-
113005-889 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
123005-960 CLAMPCLAMP
-
133005-775 GROMMET, MAGNETO LEAD WIREGROMMET, MAGNETO LEAD WIRE
