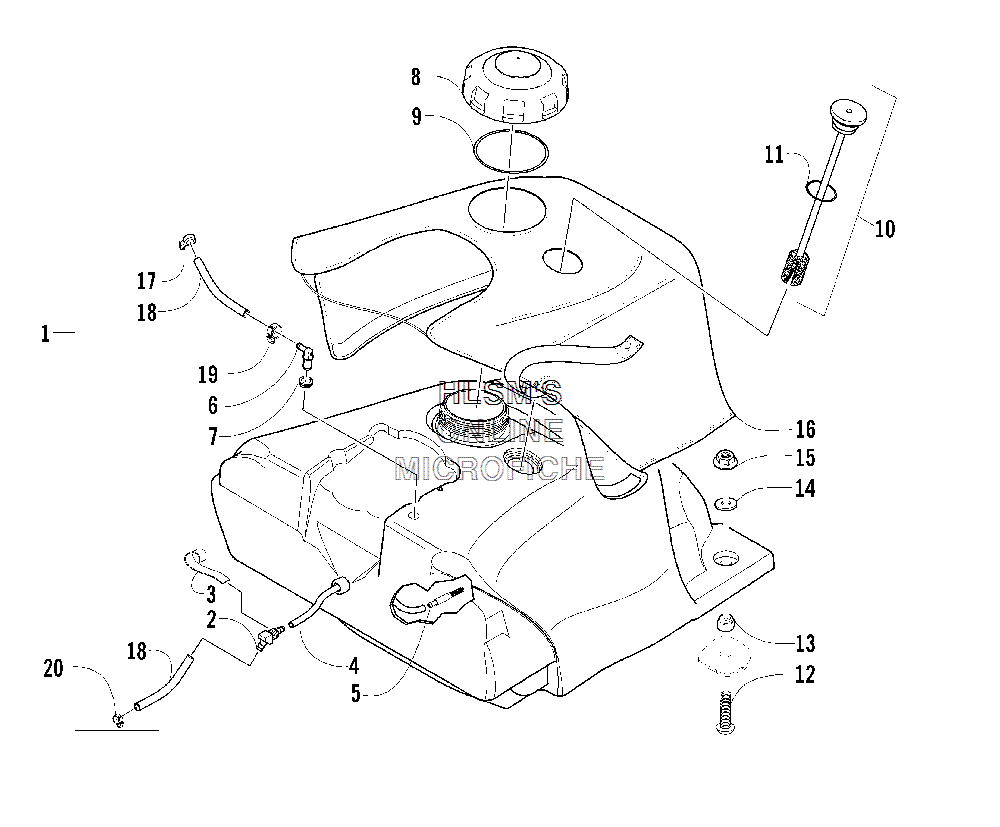

GAS TANK ASSY. для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10770-619 TANK, GAS/SEAT, BASE (INC. 2, 11)TANK, GAS/SEAT, BASE (INC. 2, 11)
-
21670-321 OUTLET, TANKOUTLET, TANK
-
30670-289 TAPE, TEFLONTAPE, TEFLON
-
46101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
46101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
61670-494 VENT, GAS TANKVENT, GAS TANK
-
71670-325 GROMMET, GAS TANK VENTGROMMET, GAS TANK VENT
-
81670-199 CAP, GAS TANK (INC. 9)CAP, GAS TANK (INC. 9)
-
91670-228 SEAL, TANK CAPSEAL, TANK CAP
-
101670-241 GAUGE, GAS W/SEAL (INC. 11)GAUGE, GAS W/SEAL (INC. 11)
-
110470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
128017-581 SCREW, MACHINESCREW, MACHINE
-
131623-077 NUT, LOCKNUT, LOCK
-
148050-222 WASHERWASHER
-
158048-366 NUT, LOCKNUT, LOCK
-
160705-950 WRAP/PAD, GAS TANKWRAP/PAD, GAS TANK
-
170623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
180610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
180610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
190623-063 CLAMP, HOSECLAMP, HOSE
-
200124-045 CLAMP, HOSECLAMP, HOSE
