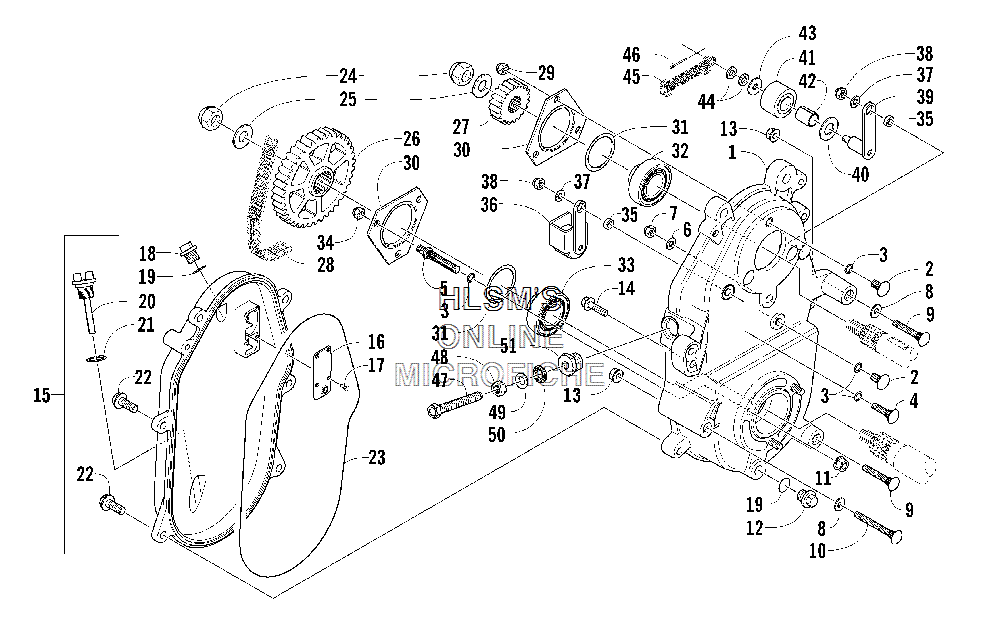

DRIVE/DROPCASE ASSY. для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10702-421 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBED (5/16-18X.625)BOLT, RIBBED (5/16-18X.625)
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBED (14-20X1.00)BOLT, RIBBED (14-20X1.00)
-
50623-317 STUDSTUD
-
60623-094 WASHER, FLAT - 5/16 IDWASHER, FLAT - 5/16 ID
-
78042-426 NUTNUT
-
88050-252 WASHER, FLAT- 5/16 X .875 X .06WASHER, FLAT- 5/16 X .875 X .06
-
98011-139 BOLT, CRG 5/16-18X2.50 GR1 Z & YBOLT, CRG 5/16-18X2.50 GR1 Z & Y
-
101623-121 BOLT, CRG-5/16-18X3.12 GR 2 Z & YBOLT, CRG-5/16-18X3.12 GR 2 Z & Y
-
118048-426 NUT, LOCKNUT, LOCK
-
120623-293 PLUG, DROPCASEPLUG, DROPCASE
-
138047-426 NUT, LOCKNUT, LOCK
-
148020-135 SCREW, CAP-HFH 5/16-18 X 1.50 GSCREW, CAP-HFH 5/16-18 X 1.50 G
-
157996-259 COVER, DROPCASE, ASSY. (INC. 16, 18 AND ONE NO. 19)COVER, DROPCASE, ASSY. (INC. 16, 18 AND ONE NO. 19)
-
161602-152 COVER, OIL VENTCOVER, OIL VENT
-
170623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180123-333 PLUG, DROPCASEPLUG, DROPCASE
-
191602-213 O-RINGO-RING
-
200602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
210670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
228020-134 SCREW, CAP-HFH 5/16-18 X 1.25 GSCREW, CAP-HFH 5/16-18 X 1.25 G
-
230602-437 SEAL, DROPCASESEAL, DROPCASE
-
240623-465 NUT, LOCKNUT, LOCK
-
250623-231 WASHER, SPRINGWASHER, SPRING
-
261602-394 SPROCKET (43 TEETH)SPROCKET (43 TEETH)
-
260602-453 SPROCKET (40 TEETH/0, 3, 000 FT ALT.)SPROCKET (40 TEETH/0, 3, 000 FT ALT.)
-
270602-973 SPROCKET (19 TEETH) (15 WIDE)SPROCKET (19 TEETH) (15 WIDE)
-
280602-972 CHAIN, 72P (15 WIDE)CHAIN, 72P (15 WIDE)
-
280602-968 CHAIN, 70P (15 WIDE)CHAIN, 70P (15 WIDE)
-
298041-426 NUT, LOCKNUT, LOCK
-
301602-521 PLATE, FLANGEPLATE, FLANGE
-
310107-003 SEAL, O-RINGSEAL, O-RING
-
321602-052 BEARING, 7/8 INCH (W/O-RING)BEARING, 7/8 INCH (W/O-RING)
-
331602-051 BEARING, 1 INCH (W/O-RING)BEARING, 1 INCH (W/O-RING)
-
348040-426 NUT, LOCKNUT, LOCK
-
360702-324 ARM, TIGHTENER, ASSY.ARM, TIGHTENER, ASSY.
-
350602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
378050-217 WASHER, FLAT- 1/4 X .625 X .065WASHER, FLAT- 1/4 X .625 X .065
-
380623-122 NUT, LOCKNUT, LOCK
-
390702-115 ARM, TIGHTENERARM, TIGHTENER
-
400623-283 WASHER, FLAT .521 X 1.01 X .06WASHER, FLAT .521 X 1.01 X .06
-
410702-129 ROLLER, TIGHTENER (INC. 42)ROLLER, TIGHTENER (INC. 42)
-
420602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
430623-284 WASHER, FLAT .271 X .75 X .06WASHER, FLAT .271 X .75 X .06
-
448050-212 WASHER, FLAT- 1/4 X .500 X .063WASHER, FLAT- 1/4 X .500 X .063
-
450702-130 SPRING ASSY.SPRING ASSY.
-
460123-082 PIN, COTTERPIN, COTTER
-
471602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
480123-150 NUT, JAM 3/8-16NUT, JAM 3/8-16
-
498050-272 WASHER, FLAT- 3/8 X .734 X .063WASHER, FLAT- 3/8 X .734 X .063
-
500623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
510602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
