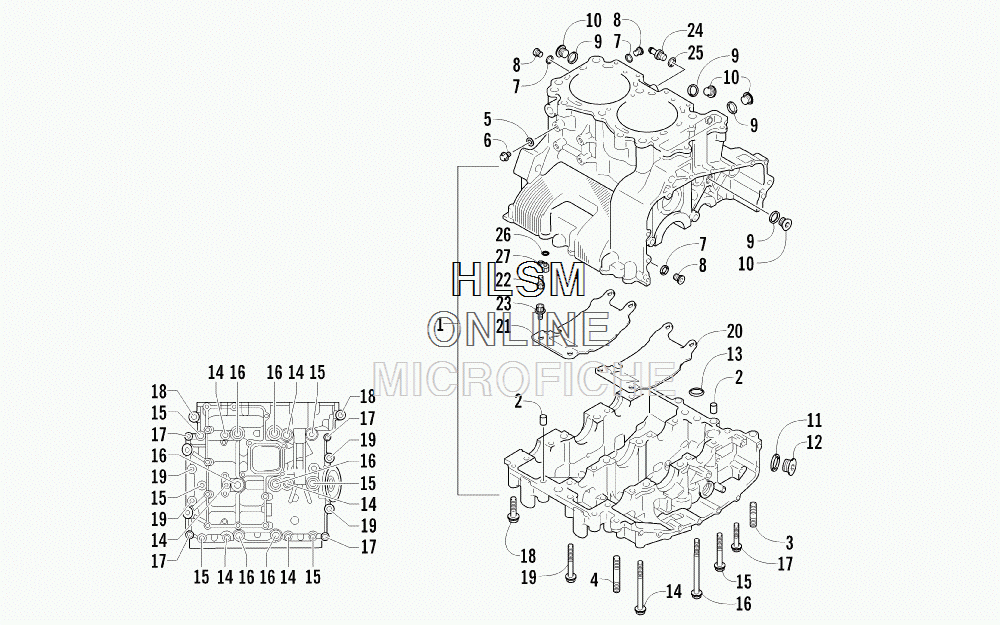

CRANKCASE ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
13007-854 CRANKCASE ASSEMBLY (INC. 2)CRANKCASE ASSEMBLY (INC. 2)
-
23004-822 ...PIN, DOWEL...PIN, DOWEL
-
33007-498 BOLT, STUDBOLT, STUD
-
43007-499 BOLT, STUDBOLT, STUD
-
53402-444 GASKETGASKET
-
63007-407 PLUG, DRAINPLUG, DRAIN
-
73007-083 GASKET, OIL PLUGGASKET, OIL PLUG
-
83423-452 PLUG, OILPLUG, OIL
-
93402-556 GASKET, OIL PLUGGASKET, OIL PLUG
-
103007-501 PLUG, OILPLUG, OIL
-
113403-106 GASKET, OIL PLUGGASKET, OIL PLUG
-
123007-085 PLUG, OILPLUG, OIL
-
133007-086 O-RING, CRANKCASEO-RING, CRANKCASE
-
143007-087 BOLT, CRANKCASE (8X90)BOLT, CRANKCASE (8X90)
-
153007-088 BOLT ,CRANKCASE (8X70)BOLT ,CRANKCASE (8X70)
-
163007-681 BOLT, CRANKCASE (10X105)BOLT, CRANKCASE (10X105)
-
173007-411 SCREW, CAPSCREW, CAP
-
183007-401 SCREW, CAPSCREW, CAP
-
193007-408 SCREW, CAPSCREW, CAP
-
203007-090 PLATE, OIL SEPARATOR - RIGHTPLATE, OIL SEPARATOR - RIGHT
-
213007-091 PLATE, OIL SEPARATOR - LEFTPLATE, OIL SEPARATOR - LEFT
-
223007-092 SCREW, CAPSCREW, CAP
-
233007-855 SCREW, CAPSCREW, CAP
-
243007-093 FITTING, HOSEFITTING, HOSE
-
253402-013 GASKETGASKET
-
263423-051 O-RINGO-RING
-
273007-094 JET, PISTON COOLINGJET, PISTON COOLING
