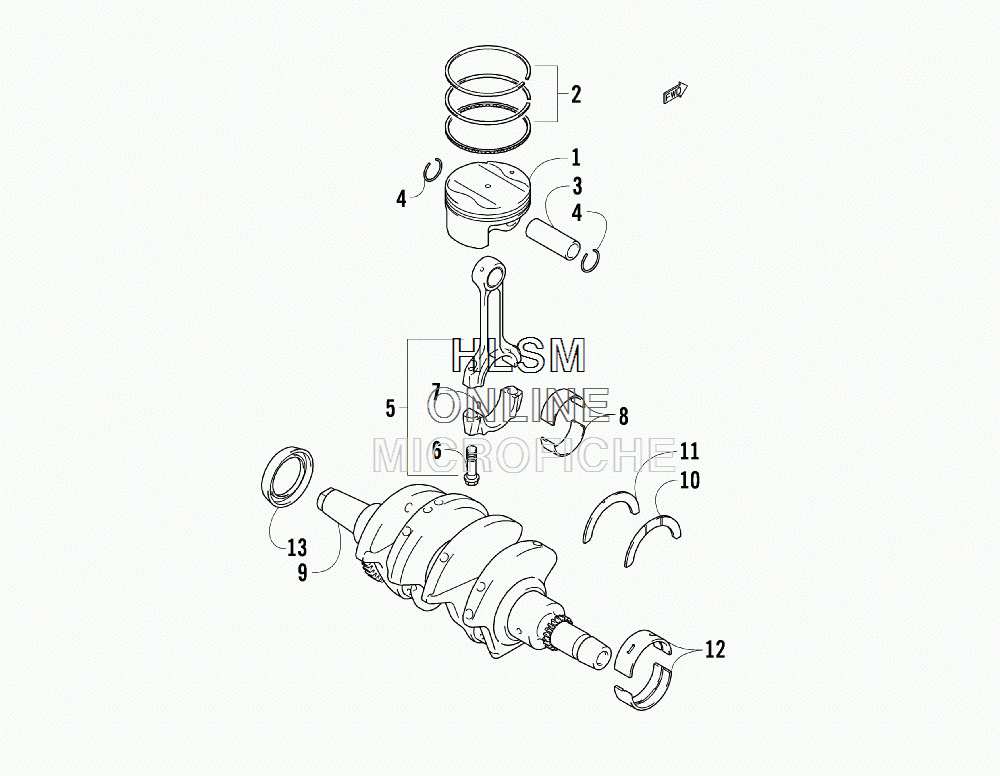

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
13007-103 PISTONPISTON
-
23007-104 RING SET, PISTONRING SET, PISTON
-
33007-105 PIN, PISTONPIN, PISTON
-
43008-529 CIRCLIP, PISTONCIRCLIP, PISTON
-
53007-106 CONNECTING ROD - ASSEMBLY (INC. 6-7)CONNECTING ROD - ASSEMBLY (INC. 6-7)
-
63007-107 ...SCREW, CAP...SCREW, CAP
-
73007-108 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
83007-109 BEARING, CRANKSHAFT PIN - GREENBEARING, CRANKSHAFT PIN - GREEN
-
83007-110 BEARING, CRANKSHAFT PIN - BLACKBEARING, CRANKSHAFT PIN - BLACK
-
83007-111 BEARING, CRANKSHAFT PIN - BROWNBEARING, CRANKSHAFT PIN - BROWN
-
83007-112 BEARING, CRANKSHAFT PIN - YELLOWBEARING, CRANKSHAFT PIN - YELLOW
-
93007-113 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
103007-114 BEARING, THRUST - GREENBEARING, THRUST - GREEN
-
113007-114 BEARING, THRUST - GREENBEARING, THRUST - GREEN
-
113007-115 BEARING, THRUST - REDBEARING, THRUST - RED
-
113007-116 BEARING, THRUST - BLACKBEARING, THRUST - BLACK
-
113007-117 BEARING, THRUST - BLUEBEARING, THRUST - BLUE
-
113007-119 BEARING, THRUST - YELLOWBEARING, THRUST - YELLOW
-
113007-120 BEARING, THRUST - WHITEBEARING, THRUST - WHITE
-
123007-121 BEARING, CRANKSHAFT - GREENBEARING, CRANKSHAFT - GREEN
-
123007-122 BEARING, CRANKSHAFT - BLACKBEARING, CRANKSHAFT - BLACK
-
123007-123 BEARING, CRANKSHAFT - BROWNBEARING, CRANKSHAFT - BROWN
-
133007-124 SEAL, OILSEAL, OIL
