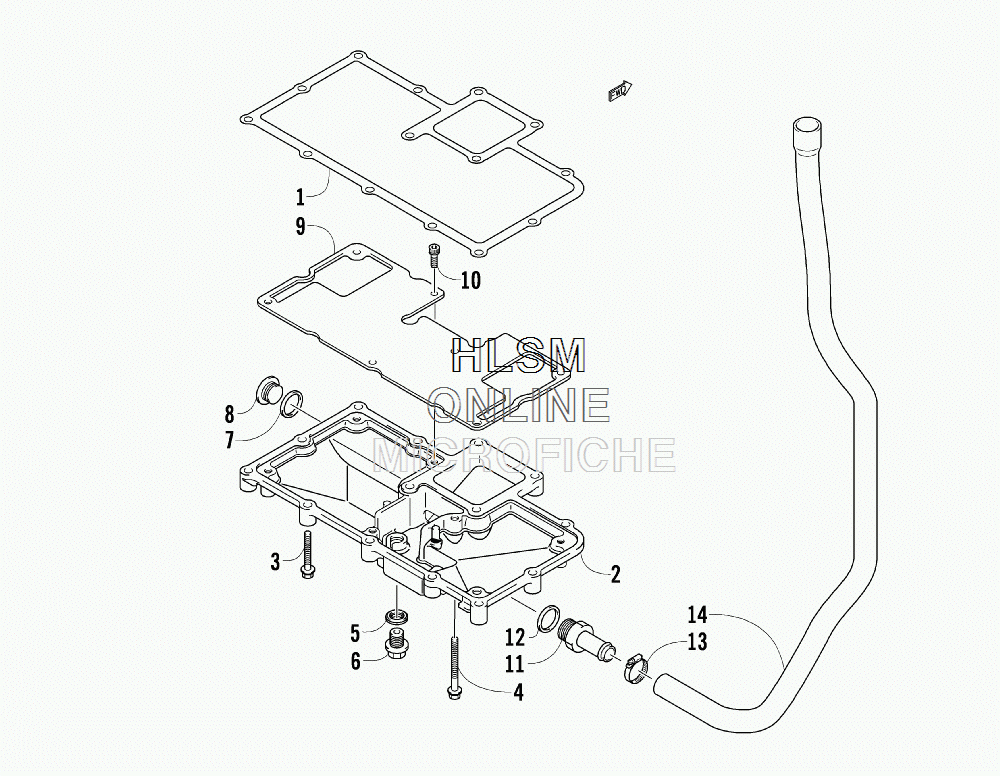

OIL PAN ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
13007-099 GASKET, OIL PANGASKET, OIL PAN
-
23007-100 PAN, OILPAN, OIL
-
33007-504 SCREW, CAPSCREW, CAP
-
43007-505 SCREW, CAPSCREW, CAP
-
53402-011 GASKETGASKET
-
63007-101 PLUG, DRAINPLUG, DRAIN
-
73402-556 GASKETGASKET
-
83007-501 PLUG, DRAINPLUG, DRAIN
-
93007-102 PLATE, OIL PANPLATE, OIL PAN
-
103007-092 SCREW, CAPSCREW, CAP
-
113007-093 FITTINGFITTING
-
123402-013 GASKETGASKET
-
133007-856 CLAMP, HOSECLAMP, HOSE
-
143007-507 HOSE, DRAINHOSE, DRAIN
