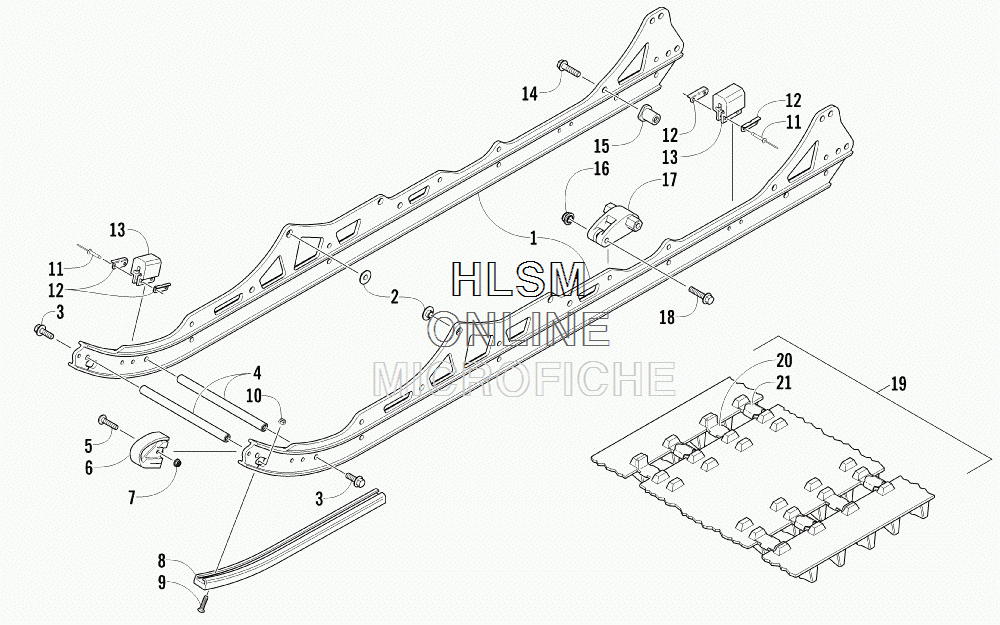

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
-2704-440 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-457 RAIL, FORMED-156"-MACHRAIL, FORMED-156"-MACH
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-826 SCREW, CAPSCREW, CAP
-
43604-425 AXLEAXLE
-
58476-625 SCREW, MACHINESCREW, MACHINE
-
63604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78427-602 NUT, LOCKNUT, LOCK
-
83604-424 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
108047-366 NUT, LOCKNUT, LOCK
-
118060-633 RIVET, BLIND-DH AA614 BLKRIVET, BLIND-DH AA614 BLK
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
130604-918 PAD, SHOCKPAD, SHOCK
-
148408-031 SCREW, CAPSCREW, CAP
-
153604-979 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
168427-802 NUT, LOCKNUT, LOCK
-
173604-513 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
188408-850 SCREW, CAPSCREW, CAP
-
192602-639 TRACK,20X154X1.375 2.86 PITCH W/BUMP (INC. 20-21)TRACK,20X154X1.375 2.86 PITCH W/BUMP (INC. 20-21)
-
202602-383 ...CLIP, GUIDE...CLIP, GUIDE
-
212602-384 ...CLIP, WEAR...CLIP, WEAR
