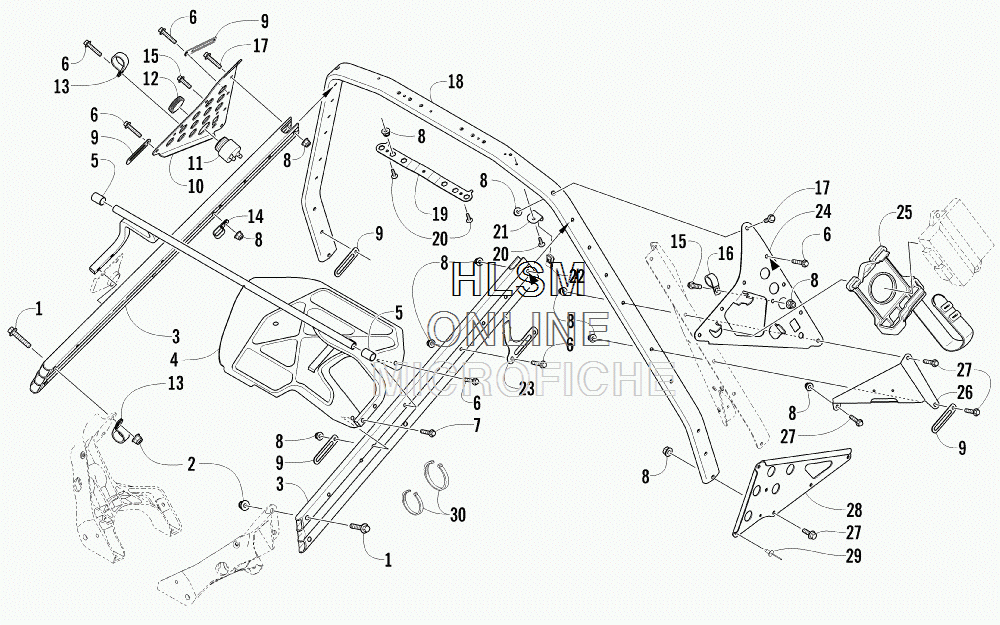

STEERING SUPPORT ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
18408-845 SCREW, CAPSCREW, CAP
-
28427-802 NUT, LOCKNUT, LOCK
-
31707-569 FRAME, UPPER - RIGHTFRAME, UPPER - RIGHT
-
30607-814 FRAME, UPPER - LEFTFRAME, UPPER - LEFT
-
44706-568 BRACKET, SUPPORT - HEADLIGHT W/HEAT SHIELDBRACKET, SUPPORT - HEADLIGHT W/HEAT SHIELD
-
51623-900 SPACERSPACER
-
68408-635 SCREW, CAP-HFH M6X1.0X35 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X35 CL8.8 Z & Y
-
78408-645 SCREW, CAP-HFH M6X1.0X45 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X45 CL8.8 Z & Y
-
88427-602 NUT, LOCKNUT, LOCK
-
91623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
100607-808 GUSSET, STEERING SUPPORT - RIGHTGUSSET, STEERING SUPPORT - RIGHT
-
110630-243 ALARM, REVERSE (INC. 12)ALARM, REVERSE (INC. 12)
-
120630-017 ...RING, RETAINING...RING, RETAINING
-
130423-594 CLAMP, ROUTINGCLAMP, ROUTING
-
141623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
158408-616 SCREW, CAPSCREW, CAP
-
160423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
178408-625 SCREW, CAPSCREW, CAP
-
180605-964 SUPPORT, STEERINGSUPPORT, STEERING
-
195606-137 PLATE, NUTPLATE, NUT
-
200623-574 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
212670-015 BRACKET, MOUNTING - AIR SILENCERBRACKET, MOUNTING - AIR SILENCER
-
220423-577 CLIP, U-NUTCLIP, U-NUT
-
234606-925 BRACKET, MOUNTING - MAP SENSORBRACKET, MOUNTING - MAP SENSOR
-
241607-093 GUSSET, STEERING SUPPORT - LEFTGUSSET, STEERING SUPPORT - LEFT
-
250645-506 MOUNT, ECMMOUNT, ECM
-
264606-908 BRACKET, SUPPORT - BELT GUARDBRACKET, SUPPORT - BELT GUARD
-
278408-630 SCREW, CAPSCREW, CAP
-
283606-744 BRACKET, FOOTREST - RIGHTBRACKET, FOOTREST - RIGHT
-
283606-745 BRACKET, FOOTREST - LEFTBRACKET, FOOTREST - LEFT
-
298060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
300123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
