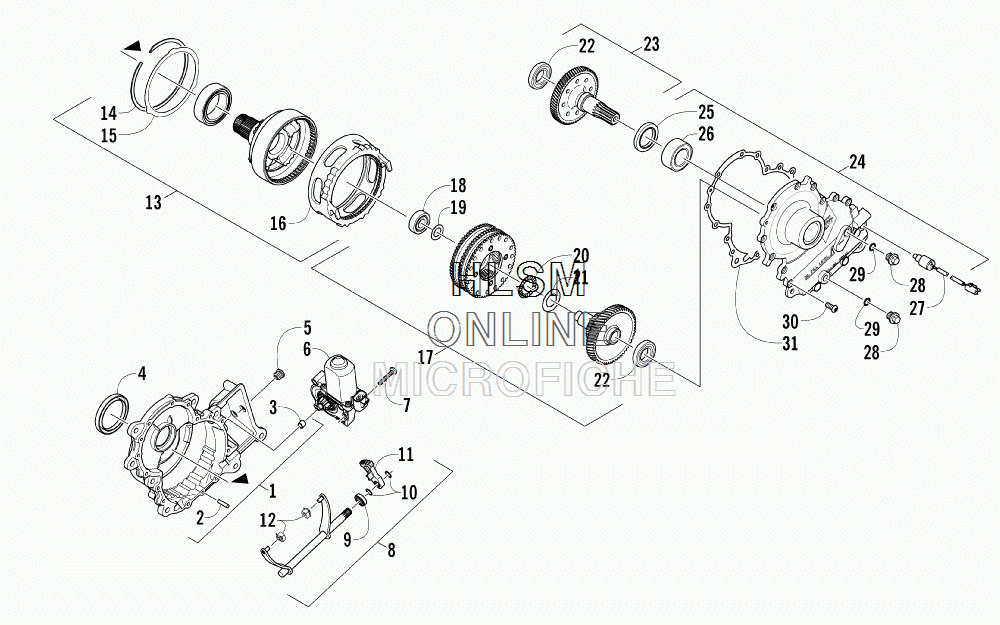

GEARCASE ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
-1702-291 COMPLETE GEARCASE ASSEMBLYCOMPLETE GEARCASE ASSEMBLY
-
11702-226 HOUSING, GEARCASE (INC. 2-4)HOUSING, GEARCASE (INC. 2-4)
-
21602-915 ...PIN, DOWEL...PIN, DOWEL
-
31602-916 ...BEARING...BEARING
-
42602-159 ...SEAL, OIL...SEAL, OIL
-
51602-917 PLUG, PLASTIC-16MMPLUG, PLASTIC-16MM
-
60630-284 ACTUATOR, SHIFTACTUATOR, SHIFT
-
78468-536 SCREW, MACHINESCREW, MACHINE
-
81702-006 FORK, SHIFT - ASSEMBLY (INC. 9-11)FORK, SHIFT - ASSEMBLY (INC. 9-11)
-
92602-013 ...SEAL, OIL...SEAL, OIL
-
102602-057 ...RING, RETAINING...RING, RETAINING
-
112602-549 ...ARM, SHIFT FORK...ARM, SHIFT FORK
-
122602-127 BLOCK, SLIDERBLOCK, SLIDER
-
130702-910 SLIDER ASSEMBLY (INC. 14-16)SLIDER ASSEMBLY (INC. 14-16)
-
142602-040 ...RING, RETAINING...RING, RETAINING
-
152602-064 ...WASHER, THRUST...WASHER, THRUST
-
162602-063 ...SLIDER, OUTER...SLIDER, OUTER
-
171702-292 GEAR, OUTPUT - 66T/24T - ASSEMBLY (INC. 18-22)GEAR, OUTPUT - 66T/24T - ASSEMBLY (INC. 18-22)
-
182602-108 ...BEARING,TRANSFER GEAR-17MM- PEER...BEARING,TRANSFER GEAR-17MM- PEER
-
192602-058 ...WASHER, THRUST...WASHER, THRUST
-
202602-317 ...BEARING, THRUST...BEARING, THRUST
-
212602-316 ...WASHER, THRUST...WASHER, THRUST
-
221602-981 ...BEARING...BEARING
-
231702-317 SHAFT, INPUT - 54T (INC. 22)SHAFT, INPUT - 54T (INC. 22)
-
240702-941 COVER, GEARCASE (INC. 25-29)COVER, GEARCASE (INC. 25-29)
-
252602-160 ...SEAL, OIL...SEAL, OIL
-
261602-982 ...BEARING...BEARING
-
270630-224 ...SWITCH, GEAR INDICATOR...SWITCH, GEAR INDICATOR
-
282602-099 ...PLUG, DRAIN-12 MM...PLUG, DRAIN-12 MM
-
291602-213 ...O-RING...O-RING
-
300423-538 SCREW, MACHINESCREW, MACHINE
-
312602-183 GASKETGASKET
-
-4639-628 FLUID, GEARCASE - 12 OZ - NOT ILLUSTRATEDFLUID, GEARCASE - 12 OZ - NOT ILLUSTRATED
