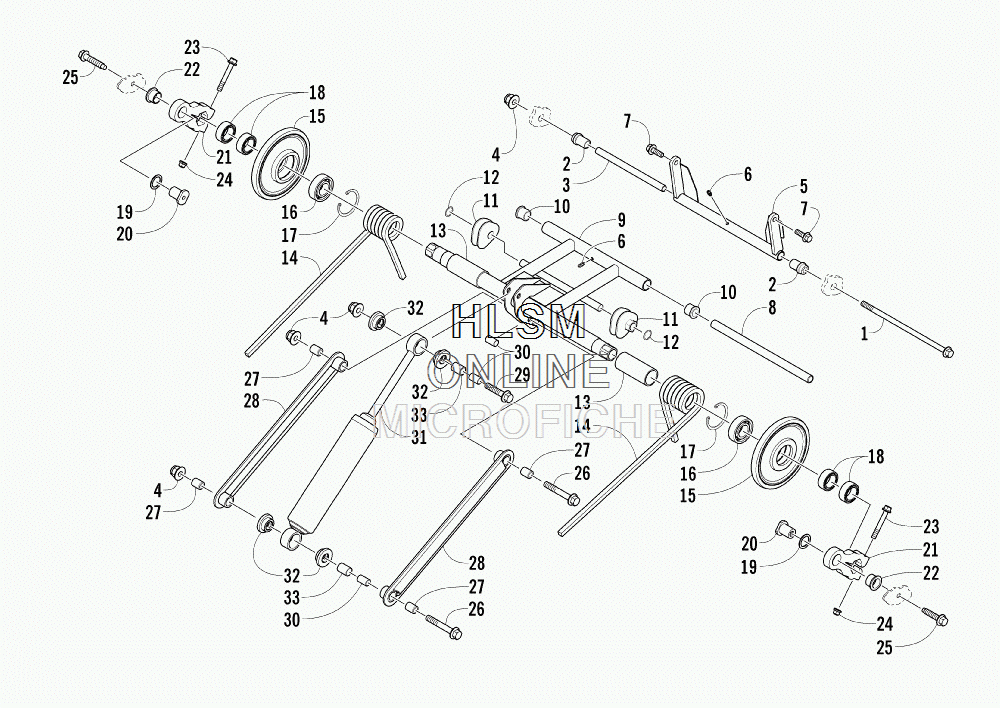

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска
-
№АртикулНазвание
-
11623-756 SCREW, CAPSCREW, CAP
-
23604-286 BUSHINGBUSHING
-
33604-441 AXLEAXLE
-
48427-002 NUT, LOCKNUT, LOCK
-
51704-779 ARM, REAR - BLACK (INC. ONE NO. 6)ARM, REAR - BLACK (INC. ONE NO. 6)
-
61623-010 ...FITTING, GREASE...FITTING, GREASE
-
78408-041 SCREW, CAPSCREW, CAP
-
83604-440 AXLEAXLE
-
91704-928 ARM, IDLER - BLACK (INC. 10 AND ONE NO. 6)ARM, IDLER - BLACK (INC. 10 AND ONE NO. 6)
-
100104-386 ...BUSHING, FLARED...BUSHING, FLARED
-
111604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
111604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
120623-138 RING, RETAININGRING, RETAINING
-
133604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
141704-842 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
141704-843 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
153604-264 WHEEL, IDLER (INC. 16-17)WHEEL, IDLER (INC. 16-17)
-
163604-257 ...BEARING, BALL-30MM...BEARING, BALL-30MM
-
173604-256 ...RING, RETAINING...RING, RETAINING
-
183604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
191604-187 WASHERWASHER
-
203604-979 AXLEAXLE
-
211704-627 PIVOT - IDLER ARM (INC. 22-24)PIVOT - IDLER ARM (INC. 22-24)
-
223604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
238408-860 ...SCREW, CAP...SCREW, CAP
-
248427-802 ...NUT, LOCK...NUT, LOCK
-
251623-836 SCREW, CAPSCREW, CAP
-
268408-090 SCREW, CAPSCREW, CAP
-
273604-330 AXLEAXLE
-
280704-929 LINK, REAR SHOCKLINK, REAR SHOCK
-
298408-050 SCREW, CAPSCREW, CAP
-
303604-109 SPACERSPACER
-
313604-442 SHOCK ABSORBER (INC. 32-33)SHOCK ABSORBER (INC. 32-33)
-
321604-262 ...BUSHING...BUSHING
-
331604-397 ...SLEEVE...SLEEVE
