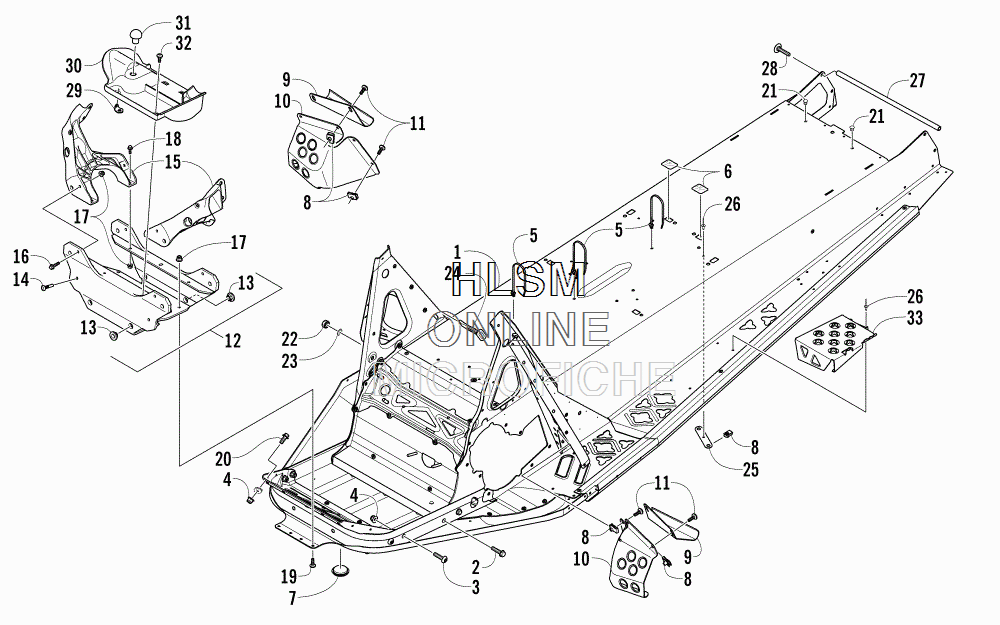

CHASSIS ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
11707-310 CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
-
21623-428 ...SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y...SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y
-
38476-835 ...SCREW,MACH-TSTRH M8X1.25X35 Z & Y...SCREW,MACH-TSTRH M8X1.25X35 Z & Y
-
48427-802 ...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
50623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
62606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
71623-625 PLUG,CENTER PANPLUG,CENTER PAN
-
80423-577 CLIP, U-NUTCLIP, U-NUT
-
93606-920 BRACKET, TOE HOOK - RIGHTBRACKET, TOE HOOK - RIGHT
-
93606-921 BRACKET, TOE HOOK - LEFTBRACKET, TOE HOOK - LEFT
-
103606-710 SHIELD, TOE - RIGHTSHIELD, TOE - RIGHT
-
103606-711 SHIELD, TOE - LEFTSHIELD, TOE - LEFT
-
118471-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)
-
121707-340 BRKT,FRT SUSP MTG-W/BUSHINGS (INC. 13-14)BRKT,FRT SUSP MTG-W/BUSHINGS (INC. 13-14)
-
130605-763 ...BUSHING,LOWER A-ARM...BUSHING,LOWER A-ARM
-
141623-443 ...BOLT, RIBBED...BOLT, RIBBED
-
150607-806 FRAME, MOUNTING - SHOCK - RIGHTFRAME, MOUNTING - SHOCK - RIGHT
-
150607-807 FRAME, MOUNTING - SHOCK - LEFTFRAME, MOUNTING - SHOCK - LEFT
-
168408-625 SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
-
178427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
188408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
198476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & YSCREW,MACH-TSTRH M6X1.0X20 Z & Y
-
208408-820 SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
-
211623-795 CLIP,CHRISTMAS TREE - 6.35MM HOLECLIP,CHRISTMAS TREE - 6.35MM HOLE
-
220623-038 NUT,HEX M6 Z & Y-SEMS (W/WASHER)NUT,HEX M6 Z & Y-SEMS (W/WASHER)
-
238053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & YWASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
-
244606-454 STRAP, HOLD-DOWN - RIGHTSTRAP, HOLD-DOWN - RIGHT
-
244606-455 STRAP, HOLD-DOWN - LEFTSTRAP, HOLD-DOWN - LEFT
-
255606-126 PLATE, BACKINGPLATE, BACKING
-
268060-686 RIVET,BLIND-DH SS64 ZINCRIVET,BLIND-DH SS64 ZINC
-
273604-540 AXLE,TUNNEL BRACEAXLE,TUNNEL BRACE
-
281623-813 SCREW,SHOULDER-M8X1.25X23 CL8.8 W/ 2353SCREW,SHOULDER-M8X1.25X23 CL8.8 W/ 2353
-
294606-770 BRACKET, RETAININGBRACKET, RETAINING
-
305606-318 CLOSE-OFF, FRONT ENDCLOSE-OFF, FRONT END
-
310612-111 BUMPER, MOLDED - RUBBERBUMPER, MOLDED - RUBBER
-
320423-557 SCREW, SHOULDER W/LOCTITESCREW, SHOULDER W/LOCTITE
-
335606-580 FOOTREST, PASSENGER - RIGHTFOOTREST, PASSENGER - RIGHT
-
335606-581 FOOTREST, PASSENGER - LEFTFOOTREST, PASSENGER - LEFT
