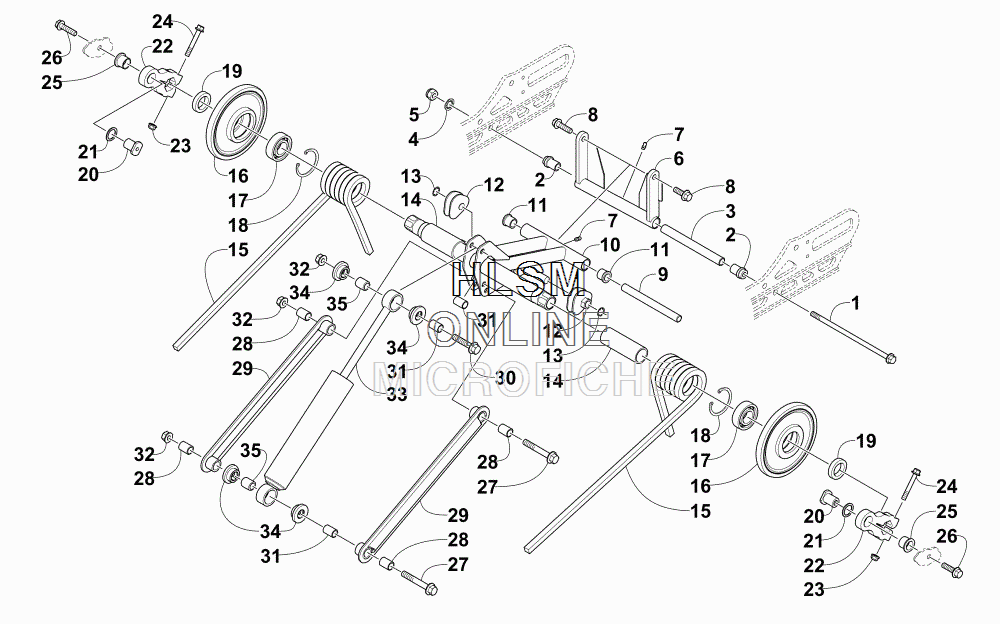

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
11423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)
-
23604-286 BUSHING,REAR ARM-PWD METALBUSHING,REAR ARM-PWD METAL
-
33604-285 AXLE,REAR ARM-INNER-M10X155.5AXLE,REAR ARM-INNER-M10X155.5
-
41623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
58422-002 NUT,HEX-THK NYL M10X1.25 CL8 Z & YNUT,HEX-THK NYL M10X1.25 CL8 Z & Y
-
61704-624 ARM, REAR - (BLACK) (INC. ONE NO. 7)ARM, REAR - (BLACK) (INC. ONE NO. 7)
-
71623-010 ...FITTING,GREASE-1/4-28 UNF-SELF THREAD...FITTING,GREASE-1/4-28 UNF-SELF THREAD
-
88408-041 SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353
-
93604-276 AXLEAXLE
-
101704-677 ARM, IDLER - (BLACK) (INC. 11 AND ONE NO. 7)ARM, IDLER - (BLACK) (INC. 11 AND ONE NO. 7)
-
111604-100 ...BUSHING,FLARED-BRONZE (.628 ID)...BUSHING,FLARED-BRONZE (.628 ID)
-
121604-204 BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
-
121604-205 BLOCK, SPRING ADJUSTER - LEFT - (BLACK)BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
-
130623-138 RING,RETAINING-ADJ BLOCK 9/16RING,RETAINING-ADJ BLOCK 9/16
-
143604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
151704-146 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
151704-147 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
163604-264 WHEEL, IDLER (INC. 17-18)WHEEL, IDLER (INC. 17-18)
-
173604-257 ...BEARING,BALL-30MM...BEARING,BALL-30MM
-
183604-256 ...RING,RETAINING-INTERNAL...RING,RETAINING-INTERNAL
-
193604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
203604-979 AXLE, OFFSET ARM - M10AXLE, OFFSET ARM - M10
-
211604-187 WASHER, OFFSET ARMWASHER, OFFSET ARM
-
221704-627 PIVOT - IDLER ARM (INC. 23-25)PIVOT - IDLER ARM (INC. 23-25)
-
238427-802 ...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
248408-860 ...SCREW,CAP-HFH M8X1.25X60 CL8.8 Z & Y...SCREW,CAP-HFH M8X1.25X60 CL8.8 Z & Y
-
253604-028 ...BUSHING, FLARED -BRONZE .735" X .751 ID...BUSHING, FLARED -BRONZE .735" X .751 ID
-
268408-031 SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353
-
278408-090 SCREW,CAP-HFH M10X1.25X90 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X90 CL8.8 Z & Y
-
283604-330 AXLE, LINKAXLE, LINK
-
290704-928 LINK, SHOCKLINK, SHOCK
-
308408-050 SCREW,CAP-HFH M10X1.25X50 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X50 CL8.8 Z & Y
-
313604-109 SLEEVE,SHOCK EYELET-10MM IDSLEEVE,SHOCK EYELET-10MM ID
-
328427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
333604-331 SHOCK ABSORBER (INC. 34-35)SHOCK ABSORBER (INC. 34-35)
-
341604-262 ...BUSHING,SHOCK-.125 FLANGE...BUSHING,SHOCK-.125 FLANGE
-
351604-397 ...SLEEVE, EYELET - INNER - .950...SLEEVE, EYELET - INNER - .950
