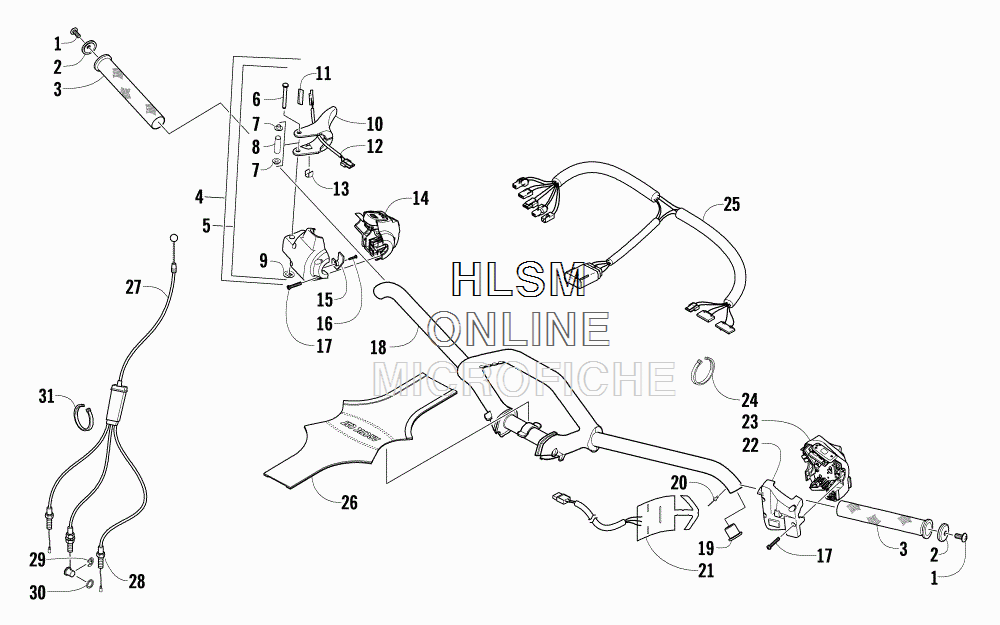

HANDLEBAR AND CONTROLS для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
11623-618 SCREW,PT THD-TSPNH K60-2.69X25MM RIE (BLACK)SCREW,PT THD-TSPNH K60-2.69X25MM RIE (BLACK)
-
21623-754 WASHER,BACKING-7MM IDX11/8OD-INJ MOLDWASHER,BACKING-7MM IDX11/8OD-INJ MOLD
-
34606-945 GRIP,HANDLEBAR-6.25"GRIP,HANDLEBAR-6.25"
-
40609-882 CONTROL, THROTTLE - RIGHT HAND - REAR (34 MM) (INC. 5-10)CONTROL, THROTTLE - RIGHT HAND - REAR (34 MM) (INC. 5-10)
-
50609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
-
90123-766 ......NUT, PUSH (INCLUDED IN KIT)......NUT, PUSH (INCLUDED IN KIT)
-
100609-795 ...LEVER, THROTTLE...LEVER, THROTTLE
-
110617-248 PAD, INSULATOR - THUMB WARMERPAD, INSULATOR - THUMB WARMER
-
120609-827 ELEMENT, THUMB WARMER - HI/LO (15 V)ELEMENT, THUMB WARMER - HI/LO (15 V)
-
130609-595 CLIP,RETAINER-TW HARNESSCLIP,RETAINER-TW HARNESS
-
140609-880 CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)
-
150609-792 COVER, CONTROL-RH-CONNECTOR RETENTIONCOVER, CONTROL-RH-CONNECTOR RETENTION
-
160609-793 SCREW, #4-24 HI-LO X .50"SCREW, #4-24 HI-LO X .50"
-
170609-791 SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LOSCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO
-
181705-229 HANDLEBAR W/INSERTS-ASSY (INC. 19-20)HANDLEBAR W/INSERTS-ASSY (INC. 19-20)
-
190605-945 ...INSERT,HANDLEBAR-INJ MOLD...INSERT,HANDLEBAR-INJ MOLD
-
208060-682 ...RIVET,BLIND-DH SS62 ZINC...RIVET,BLIND-DH SS62 ZINC
-
210609-838 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
210609-839 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
220609-883 CONTROL, LEFT HAND - REARCONTROL, LEFT HAND - REAR
-
230609-929 CONTROL, LEFT HAND W/O PPT - FRONTCONTROL, LEFT HAND W/O PPT - FRONT
-
240123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
251686-537 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
261705-285 WRAP,STEERING POST/HANDLEBARWRAP,STEERING POST/HANDLEBAR
-
270687-216 CABLE, THROTTLE (INC. 28)CABLE, THROTTLE (INC. 28)
-
280623-464 ...NUT, LOCKING-THROTTLE CABLE...NUT, LOCKING-THROTTLE CABLE
-
290124-057 E-RINGE-RING
-
300124-056 WASHERWASHER
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
