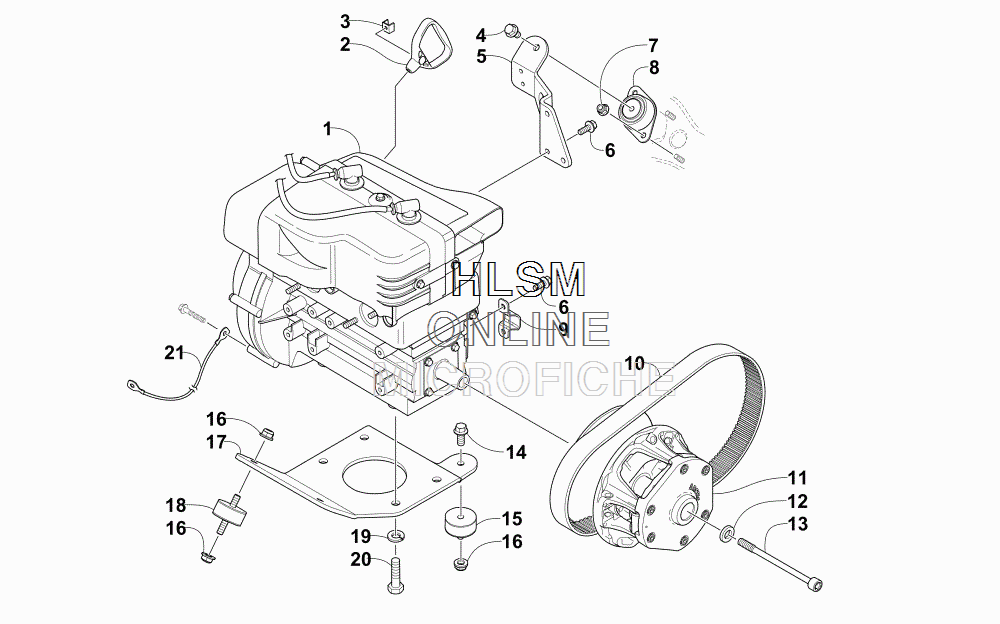

ENGINE AND RELATED PARTS для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
10762-584 LONG BLOCK,ENGINE-570LONG BLOCK,ENGINE-570
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48409-020 SCREW,CAP-HFH M10X1.25X20 CL10.9 Z & YSCREW,CAP-HFH M10X1.25X20 CL10.9 Z & Y
-
50608-571 MOUNT, ENGINE - REARMOUNT, ENGINE - REAR
-
61623-553 SCREW, CAP - HFH 5/16-18 X .750 W/2353SCREW, CAP - HFH 5/16-18 X .750 W/2353
-
78427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
80608-496 MOUNT, ENGINEMOUNT, ENGINE
-
90708-543 PLATE, SNUBBERPLATE, SNUBBER
-
100627-067 BELT, DRIVEBELT, DRIVE
-
110746-435 CLUTCH,DRIVE-UNCAL-8.25 33MM/SCLUTCH,DRIVE-UNCAL-8.25 33MM/S
-
121623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
131623-792 BOLT, CLUTCHBOLT, CLUTCH
-
142623-075 SCREW,CAP-HFH 3/8-16X5/8 GR 5-Z & Y W/204SCREW,CAP-HFH 3/8-16X5/8 GR 5-Z & Y W/204
-
150608-251 MOUNT, ENGINE - SINGLEMOUNT, ENGINE - SINGLE
-
168047-486 NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & YNUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
-
170608-562 PLATE, ENGINE MOUNTPLATE, ENGINE MOUNT
-
180608-250 MOUNT, ENGINE - DOUBLEMOUNT, ENGINE - DOUBLE
-
198051-332 WASHER,SPR LOCK-1/2 .502X.869X.125 Z & YWASHER,SPR LOCK-1/2 .502X.869X.125 Z & Y
-
208002-402 SCREW,CAP-HH 1/2-13 X1.00 G5 Z & YSCREW,CAP-HH 1/2-13 X1.00 G5 Z & Y
-
210686-126 HARNESS,ENGINE-GROUNDHARNESS,ENGINE-GROUND
