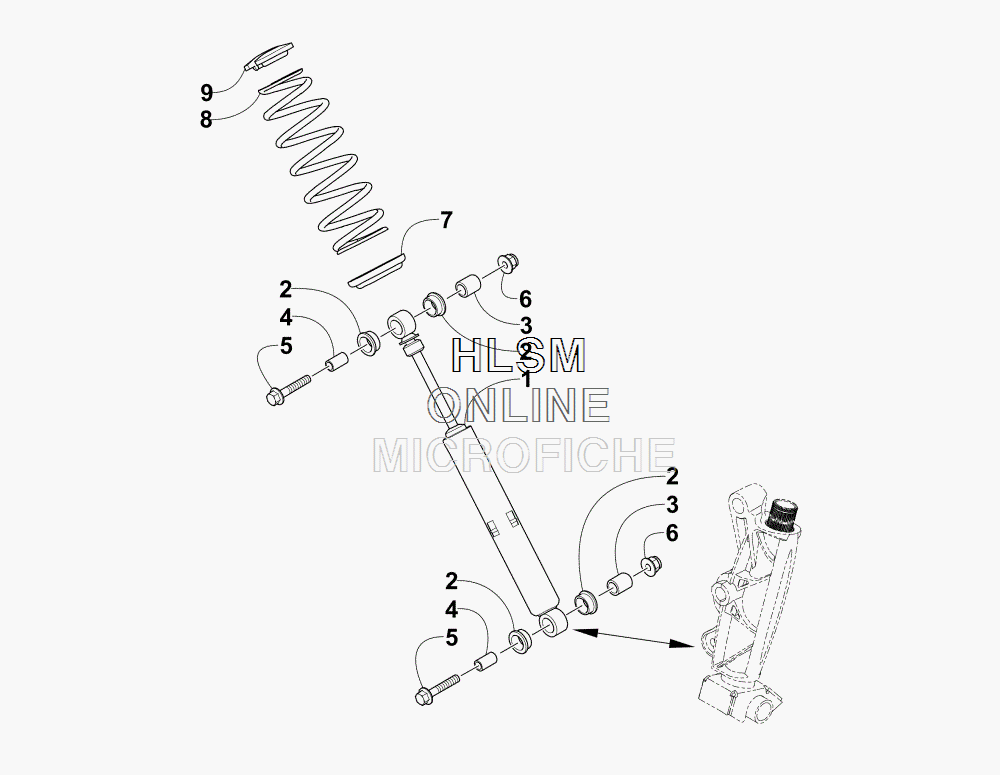

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
12703-092 SHOCK, SKI (INC. 2-3)SHOCK, SKI (INC. 2-3)
-
21604-262 ...BUSHING,SHOCK-.125 FLANGE...BUSHING,SHOCK-.125 FLANGE
-
31604-397 ...SLEEVE, EYELET - INNER - .950...SLEEVE, EYELET - INNER - .950
-
43604-109 SLEEVE,SHOCK EYELET-10MM IDSLEEVE,SHOCK EYELET-10MM ID
-
58408-055 SCREW,CAP-HFH M10X1.25X55 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X55 CL8.8 Z & Y
-
68427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
72603-719 RETAINER,SPRING-SHOCKRETAINER,SPRING-SHOCK
-
82703-735 SPRING, COMPRESSION (WHITE)SPRING, COMPRESSION (WHITE)
-
91603-889 RETAINER, SPRINGRETAINER, SPRING
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BATTERY AND TRAY ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR
- CARBURETOR AND FUEL PUMP ASSEMBLY
- CHASSIS ASSEMBLY
- CONSOLE ASSEMBLY
- CRANKCASE AND CYLINDER
- CYLINDER COWLING ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRIC START - STARTER MOTOR ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT SEAT ASSEMBLY
- • FRONT SHOCK ABSORBER ASSEMBLY
- FUEL LEVEL SENSOR ASSEMBLY
- GAS TANK ASSEMBLY
- GEARCASE ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PASSENGER SEAT AND BACKREST ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR BUMPER- HITCH- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SEAT SUPPORT ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- SUSPENSION REAR - FRONT ARM ASSEMBLY
- SUSPENSION REAR - REAR ARM ASSEMBLY
- TIE ROD ASSEMBLY
- TRACK ASSEMBLY W/ SLIDE RAIL
