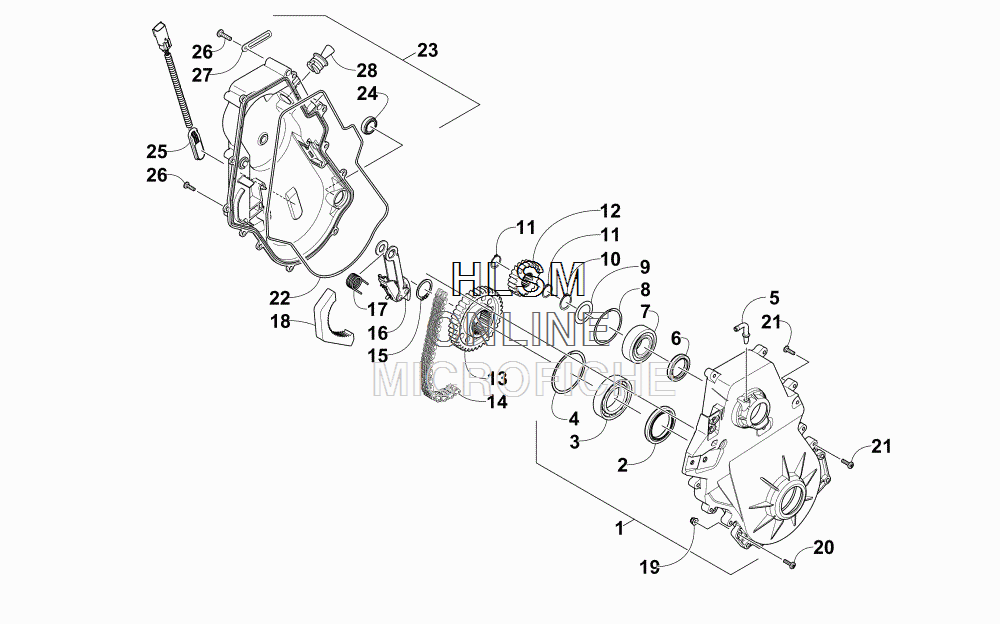

CHAIN CASE ASSEMBLY для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
-
№АртикулНазвание
-
11702-363 CHAIN CASE ASSEMBLY (INC. 2-8)CHAIN CASE ASSEMBLY (INC. 2-8)
-
22602-172 ...SEAL,OIL-HIGH COMP-50 X 65 X 8MM...SEAL,OIL-HIGH COMP-50 X 65 X 8MM
-
32602-281 ...BEARING,45 X 75 X 16 - 6009...BEARING,45 X 75 X 16 - 6009
-
42602-280 ...RING,SNAP(EH-75)...RING,SNAP(EH-75)
-
52602-641 ...FITTING,VENT-W/CHECK BALL...FITTING,VENT-W/CHECK BALL
-
62602-204 ...SEAL,35 X 47 X 7 - V...SEAL,35 X 47 X 7 - V
-
72602-734 ...BEARING,30 X 62 X 20...BEARING,30 X 62 X 20
-
82602-236 ...SNAP RING(EH-62)...SNAP RING(EH-62)
-
90648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
101423-175 RING,RETAINING-EXTERNAL (30MM SHAFT)RING,RETAINING-EXTERNAL (30MM SHAFT)
-
111623-690 SNAP RING,EXTL-.925 IDSNAP RING,EXTL-.925 ID
-
122602-666 SPROCKET - 19T (15 WIDE)SPROCKET - 19T (15 WIDE)
-
132602-584 SPROCKET - 50T (13 WIDE)SPROCKET - 50T (13 WIDE)
-
142602-373 CHAIN - 90P (15 WIDE)CHAIN - 90P (15 WIDE)
-
152602-629 SNAP RING-(MSH-43)SNAP RING-(MSH-43)
-
161702-319 TENSIONER, ARM ASSEMBLYTENSIONER, ARM ASSEMBLY
-
172602-336 SPRING,TORSIONSPRING,TORSION
-
182602-230 BLOCK,RATCHET-CHAIN ADJUSTERBLOCK,RATCHET-CHAIN ADJUSTER
-
198427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
208476-630 SCREW,MACH-TSTRH M6X1.0X30 Z & YSCREW,MACH-TSTRH M6X1.0X30 Z & Y
-
218468-622 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204
-
222602-817 SEAL, CHAIN CASE COVERSEAL, CHAIN CASE COVER
-
231702-178 COVER, CHAIN CASE (INC. 24-25)COVER, CHAIN CASE (INC. 24-25)
-
242602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
250730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
268468-626 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353
-
271623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLECLAMP, WIRE - 76.14MM LG W/6.25 HOLE
-
282602-440 PLUG,DROPCASE-2 STROKEPLUG,DROPCASE-2 STROKE
