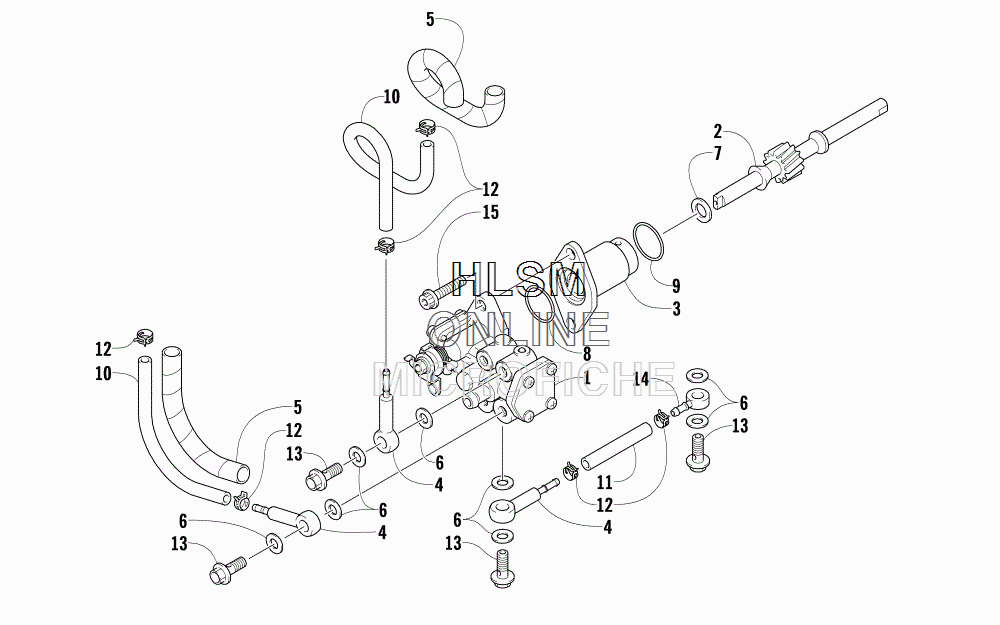

OIL PUMP для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/089082e7-9247-4420-84ac-fb3ecd63bff6.gif)
-
№АртикулНазвание
-
13007-894 PUMP,OIL-ASSEMBLYPUMP,OIL-ASSEMBLY
-
23007-895 GEAR,DRIVEN-OIL PUMPGEAR,DRIVEN-OIL PUMP
-
33007-916 RETAINER,OIL PUMP INPUT SHAFTRETAINER,OIL PUMP INPUT SHAFT
-
43003-217 CHECK VALVECHECK VALVE
-
53005-032 PROTECTORPROTECTOR
-
63402-009 WASHER, DRIVEN, M6.2X11X1.2WASHER, DRIVEN, M6.2X11X1.2
-
73423-300 SHIM WASHER,M10X18X1SHIM WASHER,M10X18X1
-
83008-030 O RING O:1.5 ID:19.5O RING O:1.5 ID:19.5
-
93005-126 O-RINGO-RING
-
103008-035 HOSE, M3X7X600HOSE, M3X7X600
-
113005-357 HOSE, M2.5X7X600HOSE, M2.5X7X600
-
123008-037 CLAMP,HOSE,M6CLAMP,HOSE,M6
-
133004-346 BOLT, UNIONBOLT, UNION
-
143003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
153007-445 BOLTBOLT
