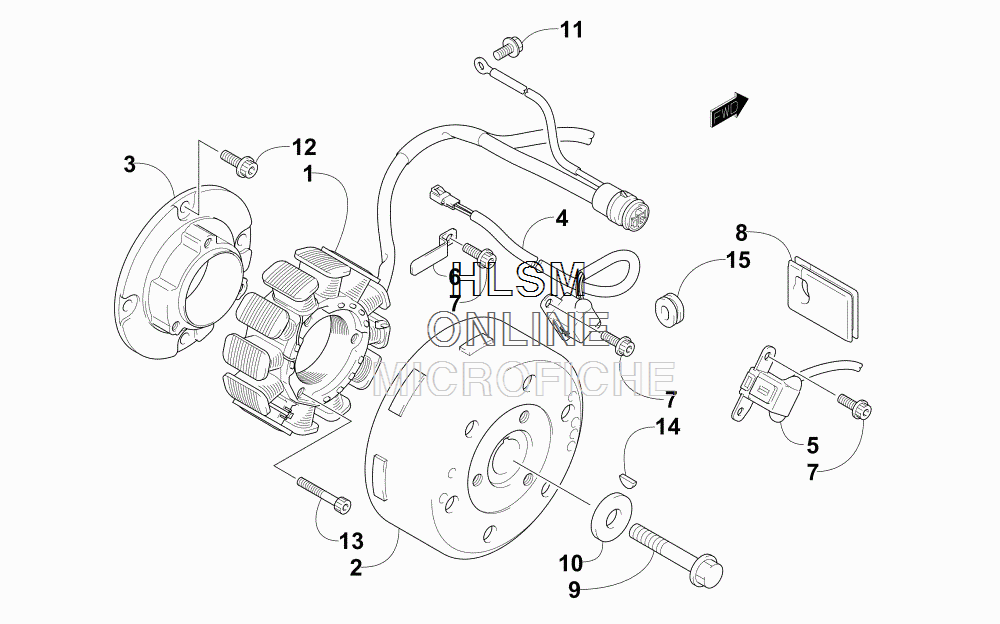

MAGNETO для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/74121496-0e40-49ba-8f63-f57a598bd468.gif)
-
№АртикулНазвание
-
13007-711 STATOR ASSEMBLYSTATOR ASSEMBLY
-
23007-315 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33007-546 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
43007-317 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
53007-318 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63005-960 RETAINER, WIRERETAINER, WIRE
-
73007-433 BOLTBOLT
-
83005-775 GROMMET, MAGNETO LEAD WIREGROMMET, MAGNETO LEAD WIRE
-
93006-476 BOLT,M10X54BOLT,M10X54
-
103005-987 WASHERWASHER
-
113007-371 BOLT (6X12)BOLT (6X12)
-
123007-449 BOLTBOLT
-
133007-450 BOLTBOLT
-
143004-540 KEY, WOODRUFFKEY, WOODRUFF
-
153007-547 GROMMET,PULSERGROMMET,PULSER
