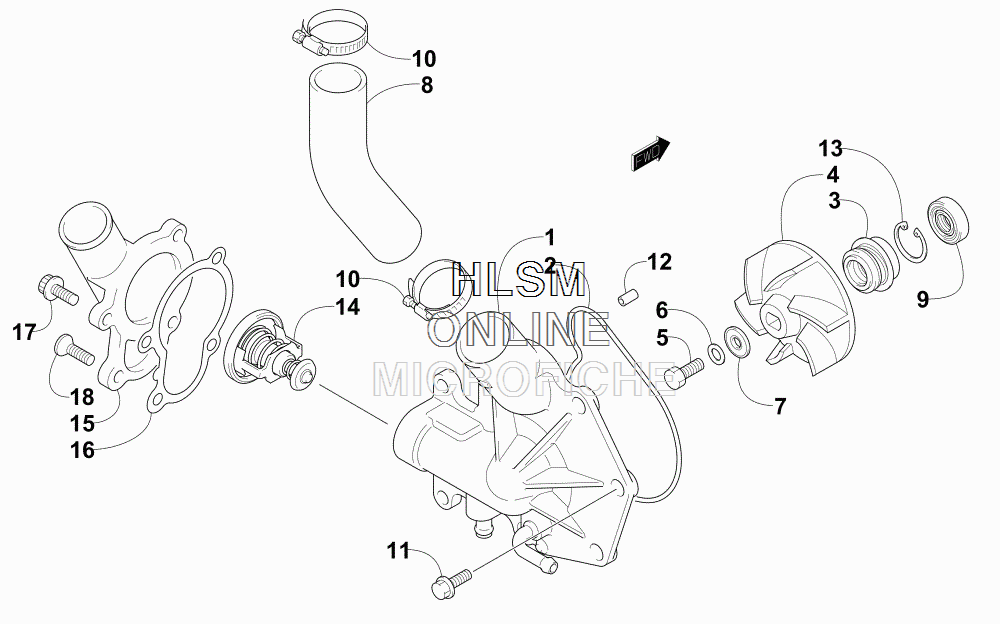

WATER PUMP AND THERMOSTAT для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/8b3995e5-a636-493f-bdf7-11678fd20fc4.gif)
-
№АртикулНазвание
-
13007-540 COVER, WATER PUMPCOVER, WATER PUMP
-
23007-541 O RING,WATER PUMP COVERO RING,WATER PUMP COVER
-
33007-180 SEAL,MECHANICALSEAL,MECHANICAL
-
43007-896 IMPELLER,WATER PUMPIMPELLER,WATER PUMP
-
53003-426 BOLT, SHAFTBOLT, SHAFT
-
63003-431 WASHER, SHAFTWASHER, SHAFT
-
73003-432 WASHER,6MMWASHER,6MM
-
83007-542 HOSE, WATER INLETHOSE, WATER INLET
-
93007-431 OIL SEAL-10X22X6OIL SEAL-10X22X6
-
103004-786 CLAMP,M38CLAMP,M38
-
113007-409 BOLTBOLT
-
123005-899 PIN, DOWELPIN, DOWEL
-
133007-714 CIRCLIP,BEARING FASTENERCIRCLIP,BEARING FASTENER
-
143007-041 THERMOSTAT,WATERTHERMOSTAT,WATER
-
153007-304 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
163007-543 GASKET,THERMOSTAT CAPGASKET,THERMOSTAT CAP
-
173007-446 BOLT,THERMOSTAT CAPBOLT,THERMOSTAT CAP
-
183007-306 BOLT,THERMOSTAT CAP (6X18.4)BOLT,THERMOSTAT CAP (6X18.4)
