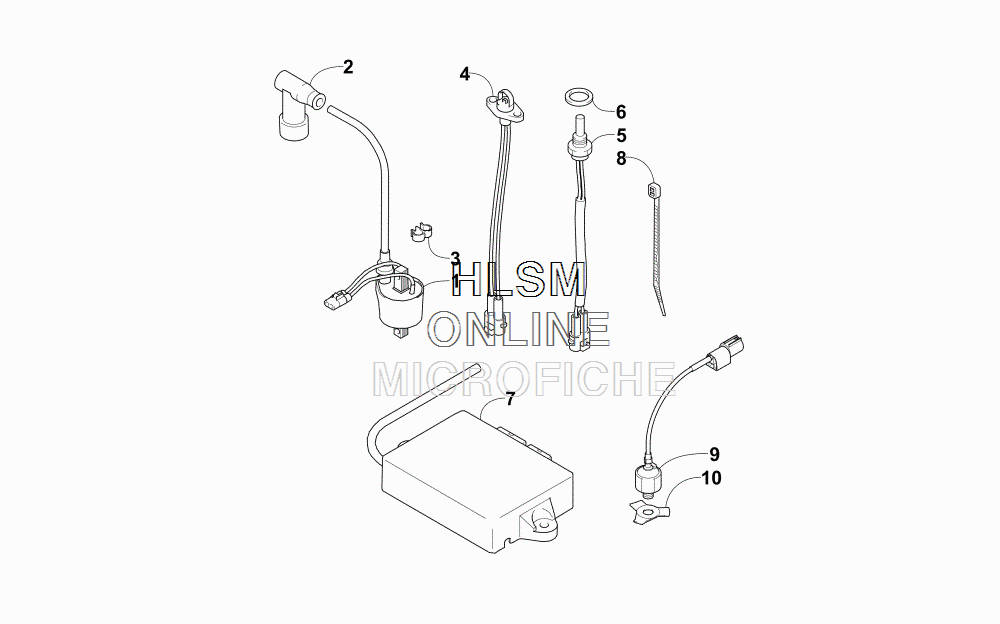

ELECTRICAL для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/20102819-55d4-418b-a573-36ddedfaf21c.gif)
-
№АртикулНазвание
-
13007-548 COIL ASSEMBLY,IGNITIONCOIL ASSEMBLY,IGNITION
-
23006-367 CAP, SPARK PLUG - (NGK TB05EMD)CAP, SPARK PLUG - (NGK TB05EMD)
-
33005-387 CLIPCLIP
-
43006-728 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
53006-725 SENSOR ASSEMBLY,COOLING WATERSENSOR ASSEMBLY,COOLING WATER
-
63005-233 WASHER, SENSORWASHER, SENSOR
-
70730-241 ECM - CIRCLEECM - CIRCLE
-
70730-242 ECM - SQUAREECM - SQUARE
-
70730-243 ECM - TRIANGLEECM - TRIANGLE
-
83005-237 CABLE TIECABLE TIE
-
93006-886 SENSOR ASSEMBLY, KNOCKSENSOR ASSEMBLY, KNOCK
-
103007-549 PLATE, KNOCK SENSOR LOCKPLATE, KNOCK SENSOR LOCK
