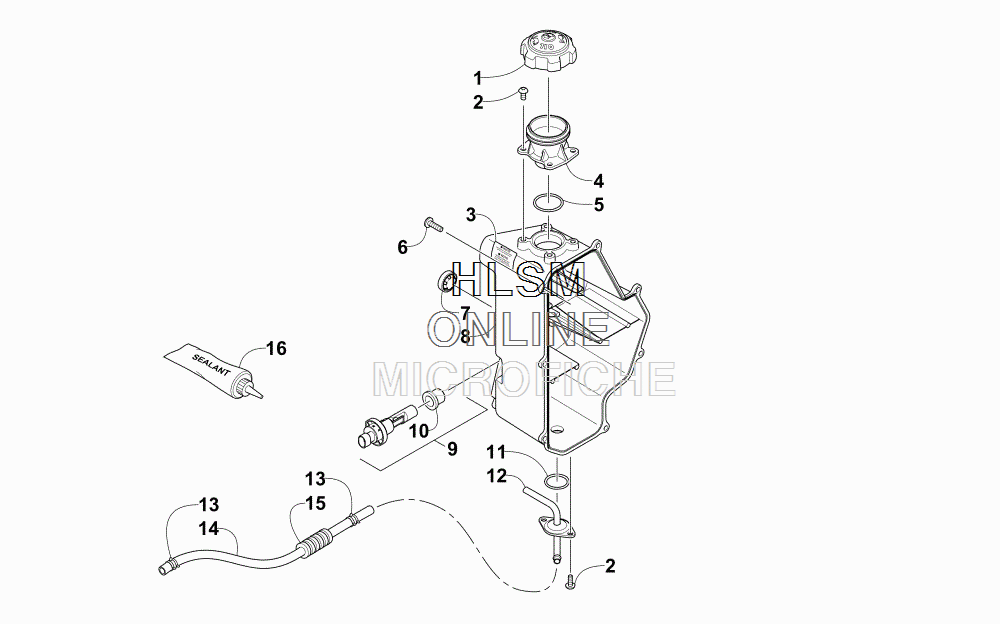

OIL TANK ASSEMBLY для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/a13f4c66-8ea4-4ac7-ad38-76eb13e11d39.gif)
-
№АртикулНазвание
-
12670-447 CAP, OIL TANKCAP, OIL TANK
-
21623-969 SCREW,MAG FORM-TXPH-M6X2.0X12 Z & CSCREW,MAG FORM-TXPH-M6X2.0X12 Z & C
-
34611-532 DECAL,OIL TANK-VEV SYNTHETICDECAL,OIL TANK-VEV SYNTHETIC
-
42670-329 NECK, OIL FILLNECK, OIL FILL
-
51623-972 O-RING,33MM X 3MM-N70O-RING,33MM X 3MM-N70
-
61623-814 SCREW,MAG FORM-TXPH-M6X2.0X24SCREW,MAG FORM-TXPH-M6X2.0X24
-
72670-257 GLASS, SIGHTGLASS, SIGHT
-
81770-019 TANK, OILTANK, OIL
-
90609-915 SWITCH, LEVEL-OIL (INC. 10)SWITCH, LEVEL-OIL (INC. 10)
-
100609-924 ...GROMMET, SWITCH-OIL LEVEL...GROMMET, SWITCH-OIL LEVEL
-
110648-441 O-RING,ADJUSTER SHEAVE (2-121)O-RING,ADJUSTER SHEAVE (2-121)
-
122670-229 FITTING, OUTLET NIPPLE,OIL TANK-2 STROKEFITTING, OUTLET NIPPLE,OIL TANK-2 STROKE
-
131623-042 CLAMP, 10MMCLAMP, 10MM
-
140610-692 HOSE, OIL/WATER - 25 FTHOSE, OIL/WATER - 25 FT
-
140610-693 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
151619-345 LOOM, HIGH TEMP-3/8" X 3 - CTLLOOM, HIGH TEMP-3/8" X 3 - CTL
-
161048-063 LOCTITE,5699-GASKET MAKER (70ML)LOCTITE,5699-GASKET MAKER (70ML)
