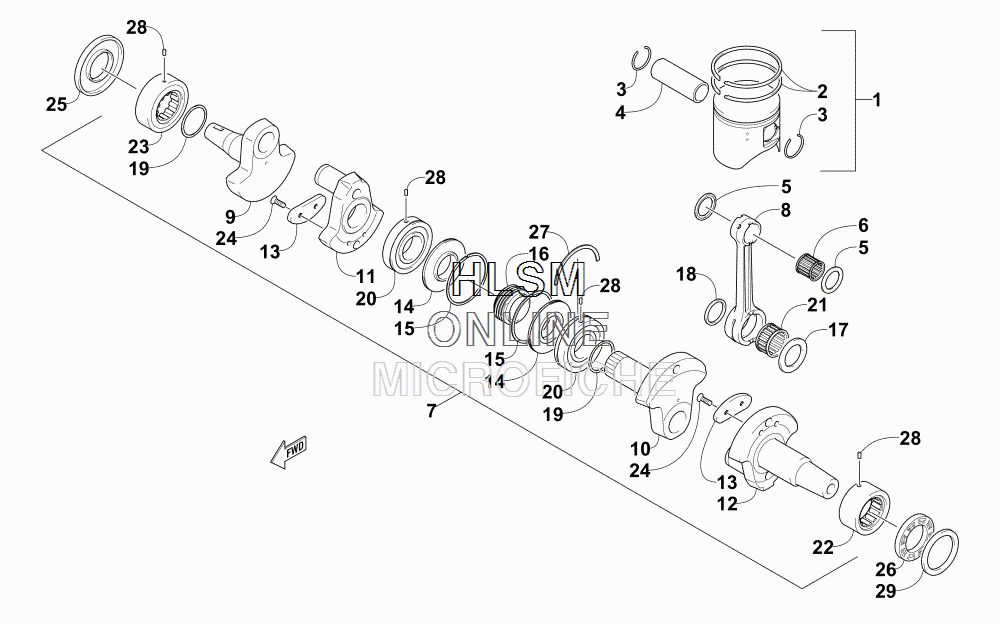

PISTON AND CRANKSHAFT для Arctic Cat M 8000 HCR 153 (RUSSIAN) (GREEN) [S2015M8HHCRUG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/2be909a9-1b94-4188-bd3e-64a77d571092.gif)
-
№АртикулНазвание
-
13007-877 PISTON SET (INC. 2-3)PISTON SET (INC. 2-3)
-
23006-394 ...RING SET, PISTON...RING SET, PISTON
-
33005-304 ...CIRCLIP, PISTON...CIRCLIP, PISTON
-
43007-878 PIN, PISTONPIN, PISTON
-
53008-500 WASHER,22MMWASHER,22MM
-
63008-503 BEARING,NEEDLE,M22BEARING,NEEDLE,M22
-
73007-879 CRANKSHAFT ASSEMBLY (INC. 8-24)CRANKSHAFT ASSEMBLY (INC. 8-24)
-
83007-880 ...CONNECTING ROD...CONNECTING ROD
-
93007-881 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
103007-882 ...CRANKSHAFT - MIDDLE...CRANKSHAFT - MIDDLE
-
113007-883 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
123007-884 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
133007-667 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
143006-508 ...RACE, MIDDLE CRANK SEAL...RACE, MIDDLE CRANK SEAL
-
153005-508 ...RING, MIDDLE CRANK SEAL...RING, MIDDLE CRANK SEAL
-
163007-885 ...GEAR, OIL PUMP DRIVE...GEAR, OIL PUMP DRIVE
-
173004-147 ...WASHER, M30X42X3...WASHER, M30X42X3
-
183006-489 ...SHIM,30X38X1...SHIM,30X38X1
-
193008-495 ...WASHER,40MM...WASHER,40MM
-
203008-421 ...BEARING,BALL,M35...BEARING,BALL,M35
-
213007-532 ...BEARING,CRANK PIN...BEARING,CRANK PIN
-
223007-439 ...BEARING-LH...BEARING-LH
-
233006-551 ...BEARING - RIGHT...BEARING - RIGHT
-
243007-440 ...SCREW...SCREW
-
253007-533 SEAL, OILSEAL, OIL
-
263003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
273003-359 C-RING,CRANKSHAFT,M75C-RING,CRANKSHAFT,M75
-
283003-658 PIN,ALIGNMENTPIN,ALIGNMENT
-
293006-552 SPACER,OIL SEALSPACER,OIL SEAL
