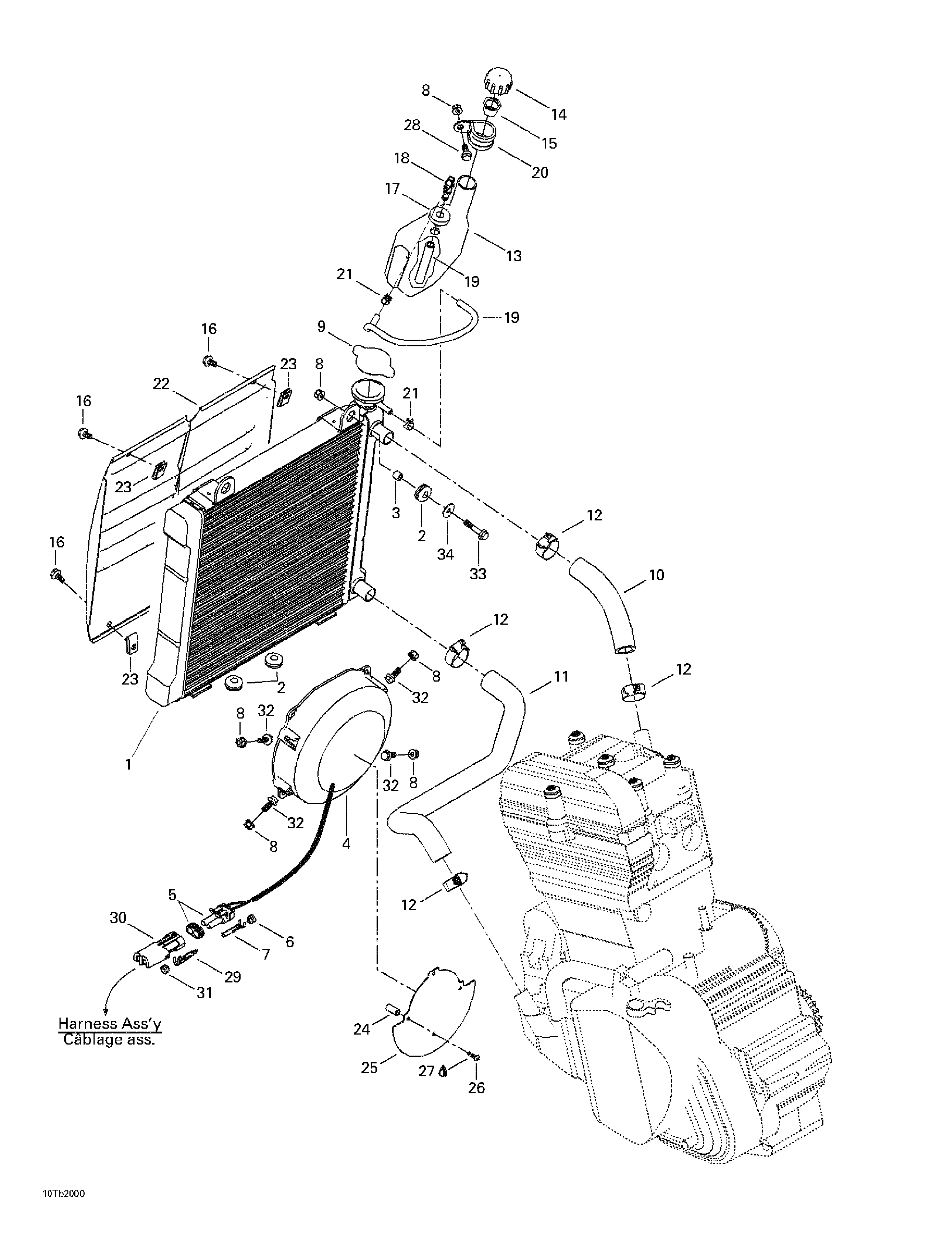

01- Cooling System для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1709200019 RadiatorRadiator
-
2293720053 GrommetGrommet
-
3512045400 BushingBushing
-
4709200020 Fan Ass'yFan Ass'y
-
5278000220 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
6278000218 SealSeal
-
409007300 Female TerminalFemale Terminal
-
8233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
9709200033 Pressure CapPressure Cap
-
10709200021 Radiator Inlet HoseRadiator Inlet Hose
-
11709200022 Radiator Outlet HoseRadiator Outlet Hose
-
12293650051 Tridon Gear ClampTridon Gear Clamp
-
13709200008 Coolant TankCoolant Tank
-
14709200009 Tank CapTank Cap
-
15709200034 Protector CapProtector Cap
-
16207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
17570135100 GrommetGrommet
-
18414580600 Elbow Male ConnectorElbow Male Connector
-
19415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
20709200036 Hose AnchorHose Anchor
-
21414554800 Spring ClipSpring Clip
-
22709200037 Radiator ProtectorRadiator Protector
-
23250000048 Nut M6Nut M6
-
24707000058 SpacerSpacer
-
25709200041 Heat ShieldHeat Shield
-
26209642590 Tapping Screw M4.2 x 25Tapping Screw M4.2 x 25
-
27293800005 Loctite 271, 10mlLoctite 271, 10ml
-
28207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
29409004300 Male TerminalMale Terminal
-
30278000217 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
31278000218 SealSeal
-
32207161644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
4224060201 Flat WasherFlat Washer
-
5413711802 Antifreeze (16 x 1 Bottle)Antifreeze (16 x 1 Bottle)
-
36709200046 ShimShim
