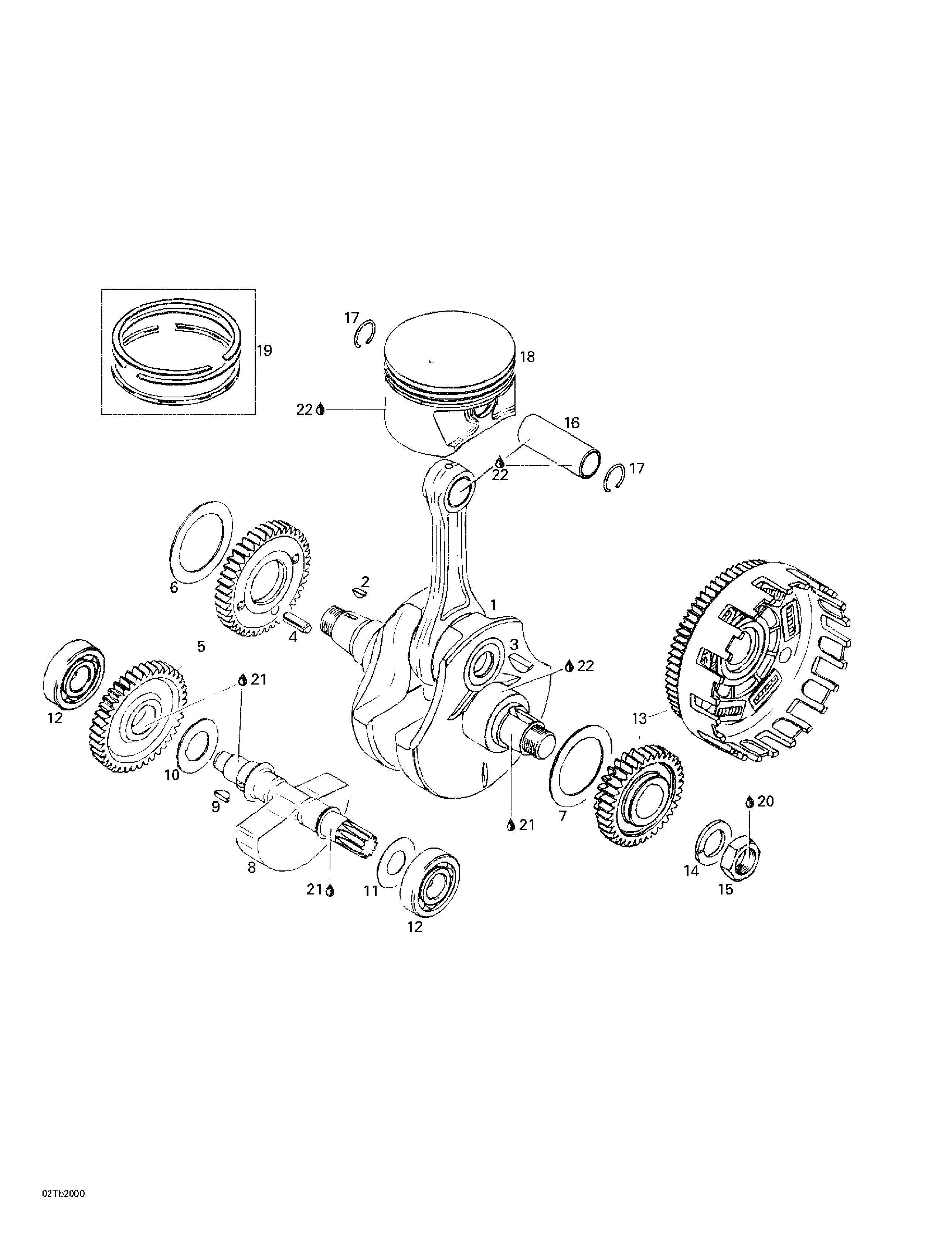

01- Crankshaft And Pistons для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1711295192 CrankshaftAss'yCrankshaftAss'y
-
2711246570 Woodruff Key 4 x 5Woodruff Key 4 x 5
-
3711946015 Woodruff Key 6 x 9Woodruff Key 6 x 9
-
4732804009 Pin 8 x 24Pin 8 x 24
-
5711294478 Balance Gear Ass'yBalance Gear Ass'y
-
6711627030 Shim 48/67/1Shim 48/67/1
-
7711627031 Shim 48/67/1,25Shim 48/67/1,25
-
711627035 Shim 48/67/1,4Shim 48/67/1,4
-
711627032 Shim 48/67/1,5Shim 48/67/1,5
-
711627033 Shim 48/67/1,75Shim 48/67/1,75
-
8711220745 BalanceShaftAss'yBalanceShaftAss'y
-
9711246570 Woodruff Key 4 x 5Woodruff Key 4 x 5
-
10711227542 Thrust Washer 24,3/41/1,5Thrust Washer 24,3/41/1,5
-
11711627070 Thrust Washer 20/41/0,8Thrust Washer 20/41/0,8
-
711627071 Thrust Washer 20/41/1Thrust Washer 20/41/1
-
711627072 Thrust Washer 20/41/1,2Thrust Washer 20/41/1,2
-
711627073 Thrust Washer 20/41/1,4Thrust Washer 20/41/1,4
-
12711932096 Ball Bearing 6304Ball Bearing 6304
-
13711296365 Primary Drive Ass'yPrimary Drive Ass'y
-
14420945759 Lock Washer 22 mmLock Washer 22 mm
-
15420842230 Nut M22Nut M22
-
16711216201 Piston PinPiston Pin
-
17711245435 Circlip #22Circlip #22
-
18711295185 PistonAss'y. Includes 18 - 19.PistonAss'y. Includes 18 - 19.
-
19711295184 Piston Ring SetPiston Ring Set
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21711297616 Klueber Grease, 60gKlueber Grease, 60g
