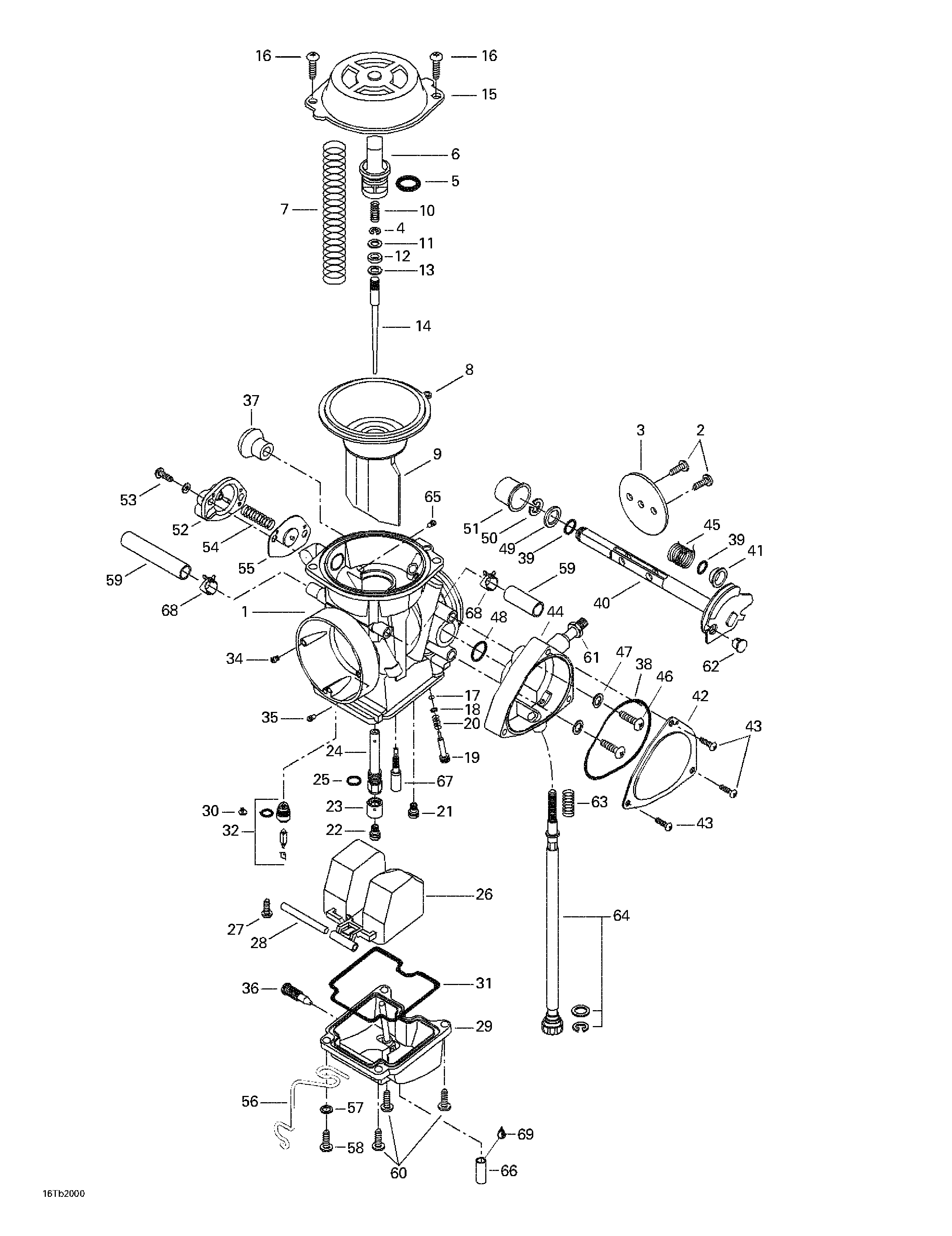

02- Carburetor для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
-707200142 CarburetorBSR-42CarburetorBSR-42
-
1707200111 Mixing BodyMixing Body
-
2707200062 ScrewScrew
-
3707200112 Throttle ValveThrottle Valve
-
4404152200 E-RingE-Ring
-
5270500144 O-RingO-Ring
-
6707200067 HolderHolder
-
7707200066 SpringSpring
-
8707200113 DiaphragmDiaphragm
-
9707200114 Valve-PistonValve-Piston
-
10707200071 SpringSpring
-
11707200072 WasherWasher
-
12707200065 RingRing
-
13707200064 WasherWasher
-
14707200137 Needle 6BCY22-60Needle 6BCY22-60
-
15707200116 Diaphragm CoverDiaphragm Cover
-
16404161903 ScrewScrew
-
17404139900 O-RingO-Ring
-
18707200018 WasherWasher
-
19707200117 AdjusterAdjuster
-
20707200078 SpringSpring
-
21707200118 Starter Jet 32.5Starter Jet 32.5
-
22270500411 Main Jet 165Main Jet 165
-
23707200079 RingRing
-
24707200080 Jet HolderJet Holder
-
25270500119 O-RingO-Ring
-
26707200103 Float Ass'yFloat Ass'y
-
27404138600 ScrewScrew
-
28404123400 PinPin
-
29707200119 Float Ass'yFloat Ass'y
-
30404161861 ScrewScrew
-
31707200083 O-RingO-Ring
-
32707200139 Valve-Needle 3.0Valve-Needle 3.0
-
33707200121 Jet-Needle (Not Shown)Jet-Needle (Not Shown)
-
34707200122 Pilot Jet 110Pilot Jet 110
-
35707200123 Jet 120Jet 120
-
36707200024 ScrewScrew
-
37707200124 Plunger Ass'yPlunger Ass'y
-
38707200092 O-RingO-Ring
-
39270500065 Sealing RingSealing Ring
-
40707200125 Throttle ShaftThrottle Shaft
-
41707200095 RingRing
-
42707200126 CoverCover
-
43707200091 ScrewScrew
-
44707200127 CaseCase
-
45707200128 SpringSpring
-
46404161848 ScrewScrew
-
47707200090 WasherWasher
-
49707200028 PackingPacking
-
50707200027 E-RingE-Ring
-
51707200026 CapCap
-
52707200105 Cover Ass'yCover Ass'y
-
53404118500 ScrewScrew
-
54707200129 SpringSpring
-
55707200106 Diaphragm AssDiaphragm Ass
-
56707200130 ClipClip
-
57707200101 WasherWasher
-
58404138700 ScrewScrew
-
59707200131 HoseHose
-
60404159300 ScrewScrew
-
61707200132 NutNut
-
62707200058 Cable GuideCable Guide
-
63404101700 SpringSpring
-
64707200133 Cable-AdjusterCable-Adjuster
-
65707200134 Air Jet 1.3Air Jet 1.3
-
66707200135 HoseHose
-
67707200136 Jet-Pilot 40Jet-Pilot 40
-
68414420700 Spring ClipSpring Clip
-
69293800071 Loctite 454, 10 gLoctite 454, 10 g
