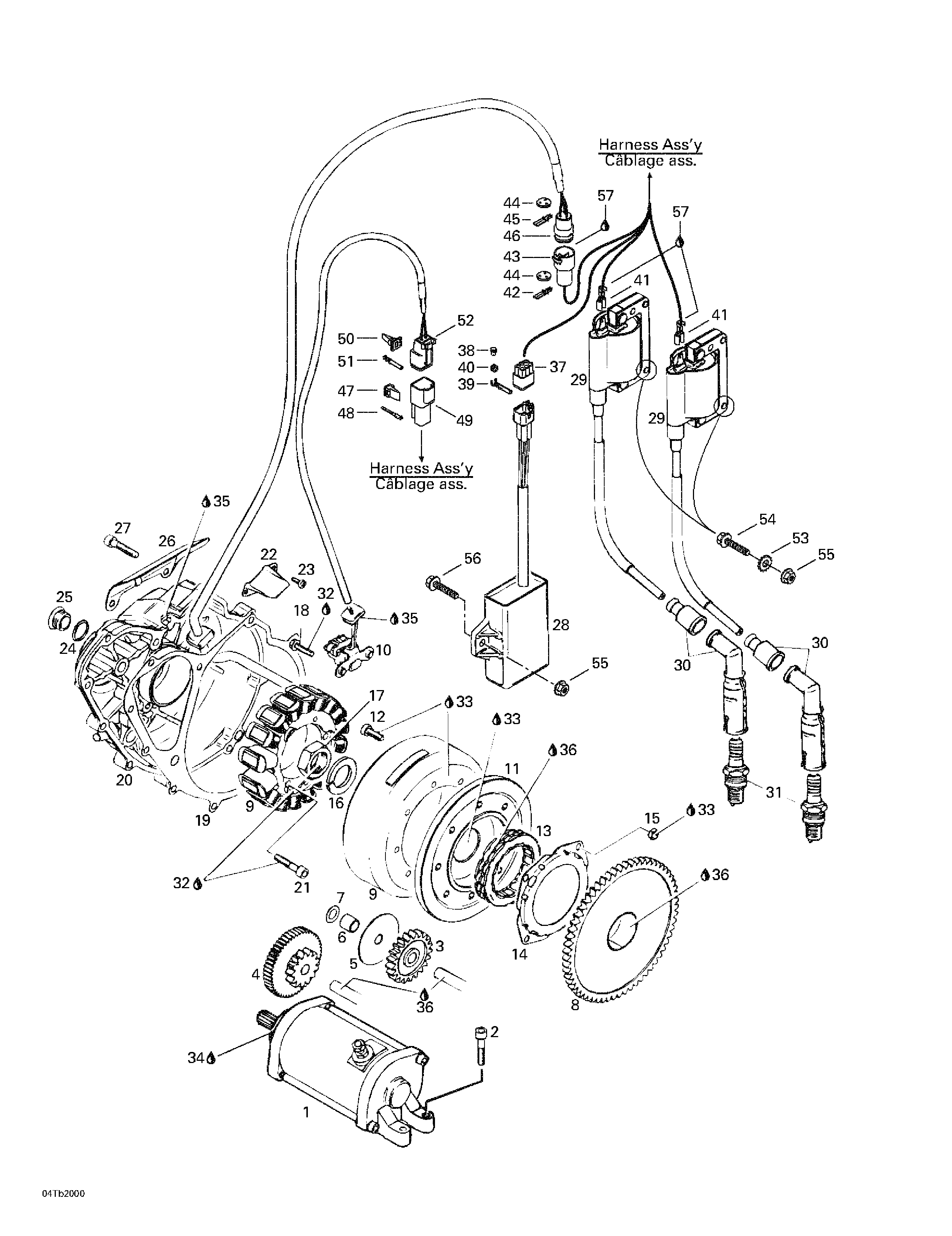

03- Ignition для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1711294351 Electric StarterElectric Starter
-
1420294354 Brush Kit (Not Shown)Brush Kit (Not Shown)
-
129330103 Starter O-ring (Not shown)Starter O-ring (Not shown)
-
2205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
3711234655 Intermediate Gear (24 Teeth)Intermediate Gear (24 Teeth)
-
4711234756 Intermediate Gear (11/52 Teeth)Intermediate Gear (11/52 Teeth)
-
5711627080 Thrust WasherThrust Washer
-
6711247785 SpacerSpacer
-
7711827590 Thrust WasherThrust Washer
-
8711634317 Starting Gear (61 Teeth)Starting Gear (61 Teeth)
-
9711295172 Magneto Ass'y 12V/280WMagneto Ass'y 12V/280W
-
10711265153 Pickup Ass'yPickup Ass'y
-
11711264577 Flywheel HubFlywheel Hub
-
12711640980 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
13711958857 Clutch-SpragClutch-Sprag
-
14711259192 Housing-Clutch SpragHousing-Clutch Sprag
-
15711242031 Nut BM6Nut BM6
-
16420945759 Lock Washer 22 mmLock Washer 22 mm
-
17420842230 Nut M22Nut M22
-
18420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
19711250920 GasketGasket
-
20711211291 Ignition CoverIgnition Cover
-
21711241810 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
22711251880 Cable Inner CoverCable Inner Cover
-
23290240195 Tapping ScrewTapping Screw
-
24290250890 O-RingO-Ring
-
25290241801 Drain PlugDrain Plug
-
26711251990 Cable External CoverCable External Cover
-
27205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
28711265368 Amplifier BoxAmplifier Box
-
29711265357 Ignition CoilIgnition Coil
-
30711665010 Spark Plug CapSpark Plug Cap
-
31707000008 Spark Plug (NGK DR8EA)Spark Plug (NGK DR8EA)
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
34711297616 Klueber Grease, 60gKlueber Grease, 60g
-
35420297906 Sealing Compound Dreibond, 30 mlSealing Compound Dreibond, 30 ml
-
37710000081 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
38710000080 CapCap
-
39409012100 Female TerminalFemale Terminal
-
40409012300 SealSeal
-
42409011100 Male TerminalMale Terminal
-
43409207900 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
44409208500 SealSeal
-
45409011900 Female TerminalFemale Terminal
-
46409208200 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
47409207500 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
48278000631 Male TerminalMale Terminal
-
49409206900 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
50409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
51278000632 Female TerminalFemale Terminal
-
52409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
53250200000 Lock WasherLock Washer
-
54207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
55233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
56207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
57293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
