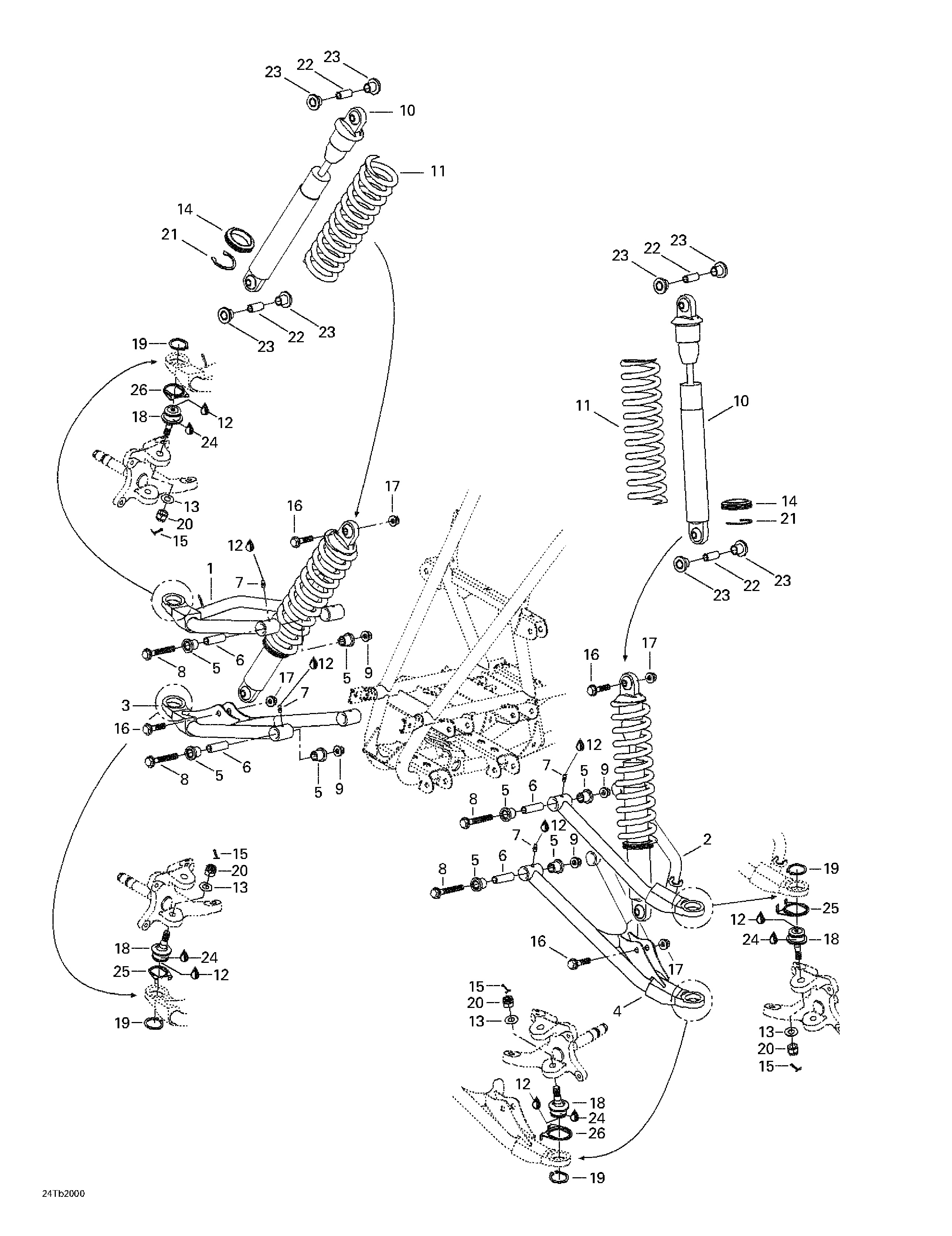

07- Front Suspension для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1706200121 R.H. Upper ArmR.H. Upper Arm
-
2706200122 L.H. Upper ArmL.H. Upper Arm
-
3706200123 R.H. Lower ArmR.H. Lower Arm
-
4706200124 L.H. Lower ArmL.H. Lower Arm
-
5706200063 CushionCushion
-
6706200061 Internal BushingInternal Bushing
-
7408200700 Grease FittingGrease Fitting
-
8207607546 Hex. Flanged Screw M10 x 75Hex. Flanged Screw M10 x 75
-
9233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
10706200081 Front ShockFront Shock
-
11706200082 Front SpringFront Spring
-
12293550010 Synthetic GreaseSynthetic Grease
-
13503175400 Hardened WasherHardened Washer
-
14706200085 Spring SeatSpring Seat
-
15211400017 Cutter PinCutter Pin
-
16207605044 Hex. Flanged Screw M10 x 50Hex. Flanged Screw M10 x 50
-
17233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
18703500082 Ball JointBall Joint
-
19293370017 CirclipCirclip
-
20232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
21706200138 Ring HolderRing Holder
-
22706200097 BushingBushing
-
23706200099 CushionCushion
-
24413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
25706200142 Tab Lock (Lower R.H./Upper L.H.)Tab Lock (Lower R.H./Upper L.H.)
-
26706200141 Tab Lock (Lower L.H./Upper R.H.)Tab Lock (Lower L.H./Upper R.H.)
