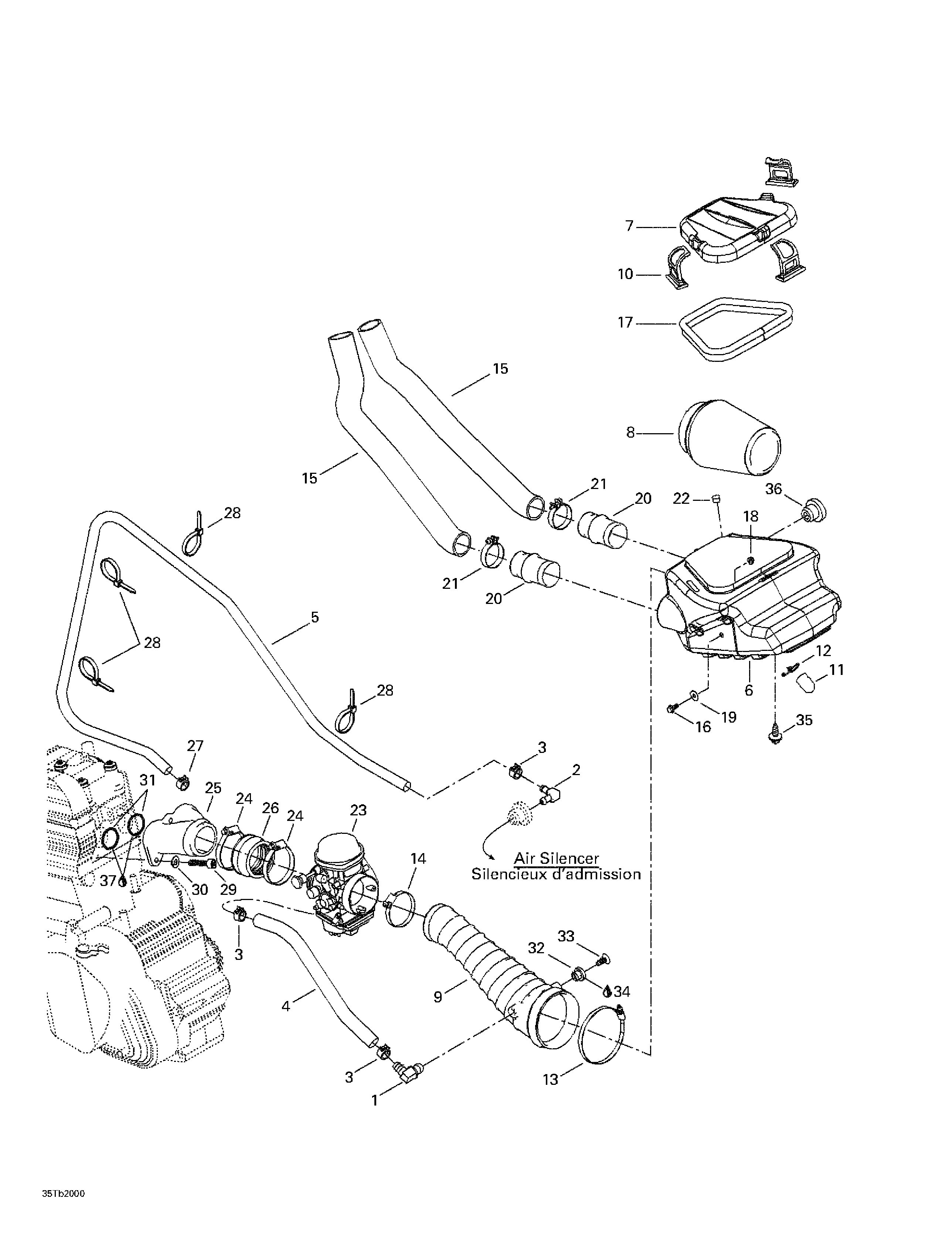

02- Air Intake System для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1414523600 Elbow FittingElbow Fitting
-
2250100019 Lock NutLock Nut
-
3414655700 Spring ClampSpring Clamp
-
4414644800 Oil LineOil Line
-
5276000001 Hose 12.5 mmHose 12.5 mm
-
6707800021 Air SilencerAir Silencer
-
7707800022 Air Silencer CoverAir Silencer Cover
-
8707800023 Air FilterAir Filter
-
9707800076 FoamFoam
-
10708200003 Latch-CoverLatch-Cover
-
11707800006 Drain TubeDrain Tube
-
12707800005 Clip RetainerClip Retainer
-
13514052983 Norma Gear ClampNorma Gear Clamp
-
14293650091 Norma Gear ClampNorma Gear Clamp
-
15291000693 Vent HoseVent Hose
-
16207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
17293250047 Neoprene SealNeoprene Seal
-
18233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
19224060201 Flat WasherFlat Washer
-
20707800038 DeflectorDeflector
-
21293650106 Gemi ClampGemi Clamp
-
22572051500 CapCap
-
23707200142 Carburetor BSR-42Carburetor BSR-42
-
24293650090 Norma Gear ClampNorma Gear Clamp
-
25711267230 Intake AdaptorIntake Adaptor
-
26711267240 Carburetor AdaptorCarburetor Adaptor
-
27293650047 Oetiker ClampOetiker Clamp
-
28414115200 Tie RapTie Rap
-
29205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31293300059 O-RingO-Ring
-
32275500345 Hose 8 mmHose 8 mm
-
33707000131 Vent HoseVent Hose
-
34413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
35293730018 Dart-MountDart-Mount
-
36293750008 Tie Rap 350 mmTie Rap 350 mm
-
37293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
38707800076 Intake AdaptorIntake Adaptor
