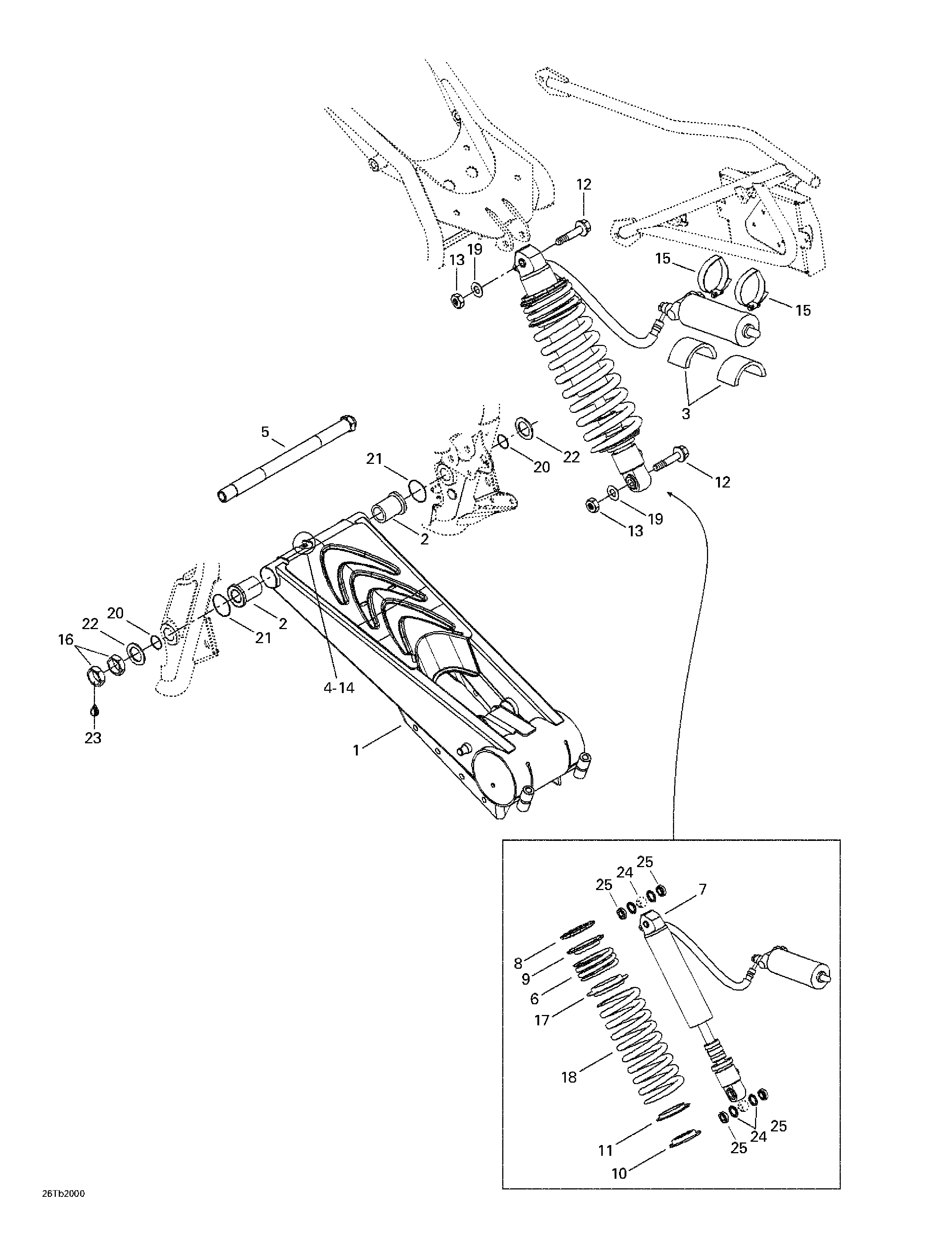

08- Rear Suspension для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1706000080 Swing ArmSwing Arm
-
2706000089 CushionCushion
-
3293830083 ProtectorProtector
-
4408200700 Grease FittingGrease Fitting
-
5706000102 Pivot BoltPivot Bolt
-
6706000059 Rear Spring (Short)Rear Spring (Short)
-
7706000058 RearShock. Includes 7 - 10.RearShock. Includes 7 - 10.
-
8706000082 Ring StopperRing Stopper
-
9706000062 Spring StopperSpring Stopper
-
10706000105 Ball JointBall Joint
-
11706000060 Spring GuideSpring Guide
-
12207626046 Hex. Flanged Screw M12 x 60Hex. Flanged Screw M12 x 60
-
13232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
14293550010 Synthetic GreaseSynthetic Grease
-
15514052859 Norma Gear ClampNorma Gear Clamp
-
16250100009 Jam Nut M20Jam Nut M20
-
17706000079 Spring SpacerSpring Spacer
-
18706000077 Rear Spring (Long)Rear Spring (Long)
-
19732900048 WasherWasher
-
20293300074 O-RingO-Ring
-
21293300068 O-RingO-Ring
-
22293050003 WasherWasher
-
23293800060 Loctite 243, 10mlLoctite 243, 10ml
-
24293250111 SealSeal
-
25706000103 CushionCushion
-
26706000061 Spring StopperSpring Stopper
