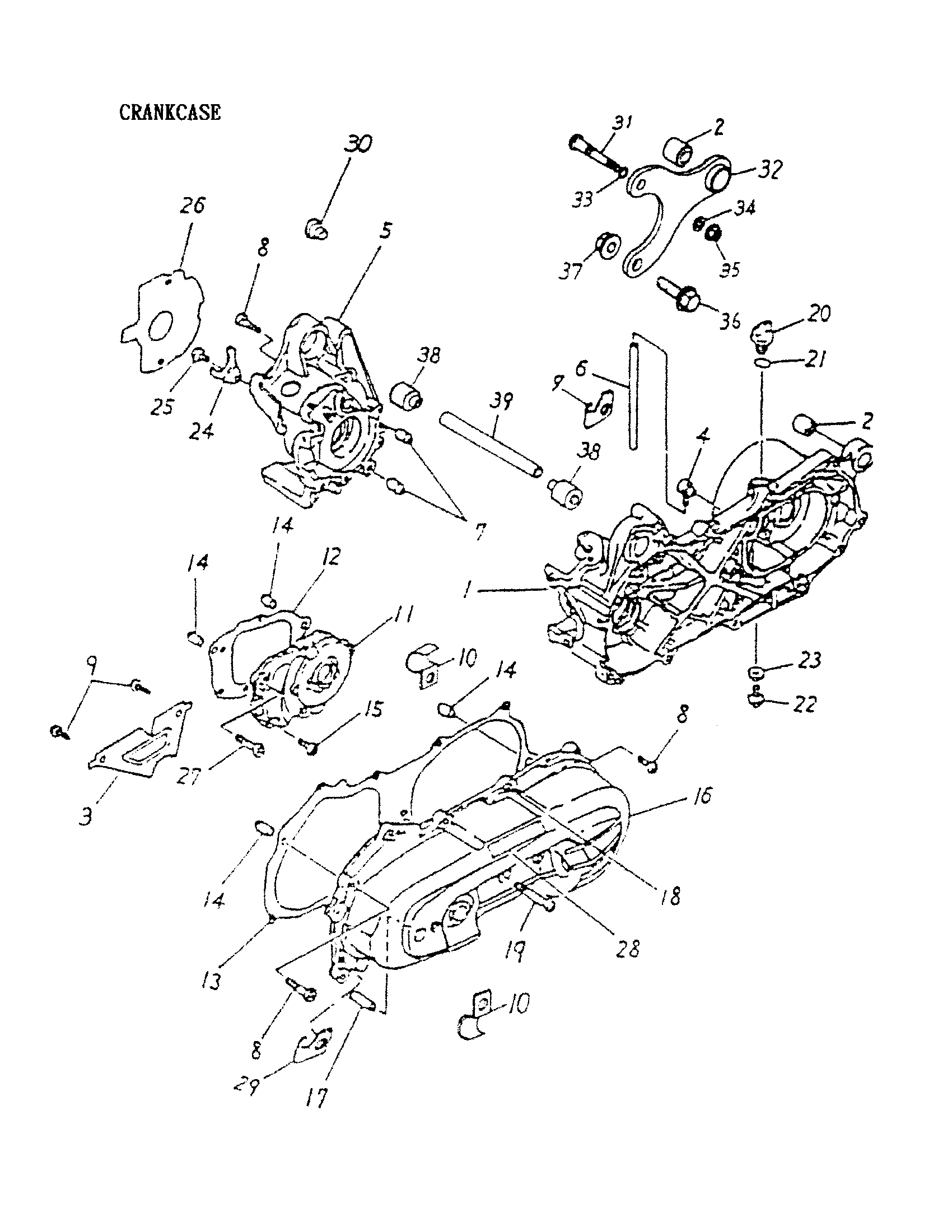

01- Crankcase (170-08) для BRP Mini DS 90 2-strokes - 2002
-
№АртикулНазвание
-
1A11201117000 Left CrankcaseLeft Crankcase
-
2A96400082020 Rubber Bushing (8 x 20 x 20)Rubber Bushing (8 x 20 x 20)
-
3A11342116000 Plate L CoverPlate L Cover
-
4A1661010400A Breather Hose HeadBreather Hose Head
-
5A11101117000 Right CrankcaseRight Crankcase
-
6A944000408A130 Breather HoseBreather Hose
-
7A9430112160 Dowel PinDowel Pin
-
8A9100006035 Hex. Socket Bolt M6 x 35Hex. Socket Bolt M6 x 35
-
9A9390304008 Tapping Screw Truss Head Phillips M4 x 8Tapping Screw Truss Head Phillips M4 x 8
-
10A1135112000A ClampClamp
-
11A21301116000 Mission CoverMission Cover
-
12A21395116000 Mission Cover GasketMission Cover Gasket
-
13A11359116000 Crankcase Cover GasketCrankcase Cover Gasket
-
14A9430110140 Dowel PinDowel Pin
-
15A9100006020 Hex. Socket Bolt M6 x 20Hex. Socket Bolt M6 x 20
-
16A1134111600B Left Crankcase CoverLeft Crankcase Cover
-
17A96300080320 Shaft IdlerShaft Idler
-
18A9100006025 Hex. Socket Bolt M6 x 25Hex. Socket Bolt M6 x 25
-
19A9100006060 Hex. Socket Bolt M6 x 60Hex. Socket Bolt M6 x 60
-
20A15650110000 Oil PlugOil Plug
-
21A91312104000 Oil RingOil Ring
-
22A960000801512 Hex. Washer Face Bolt M8 x 15Hex. Washer Face Bolt M8 x 15
-
23A941010813010 Copper Plain Washer M8Copper Plain Washer M8
-
24A11111104000 Oil Seal BracketOil Seal Bracket
-
25A9100006010 Hex. Socket Bolt M6 x 10Hex. Socket Bolt M6 x 10
-
26A11121116000 Generator GasketGenerator Gasket
-
27A9100006030 Hex. Socket Bolt M6 x 30Hex. Socket Bolt M6 x 30
-
28704900289 Bombardier LabelBombardier Label
-
29A11351104000 Carburator Tube BracketCarburator Tube Bracket
-
30A11102116000 Project ShroudProject Shroud
-
31A45110145000 Fix ShaftFix Shaft
-
32A11202145000 Crankcase BracketCrankcase Bracket
-
33A91307101000 Oil RingOil Ring
-
34A941010815015 Plain Washer (M8)Plain Washer (M8)
-
35A9405008000 Hex. Flanged Nut With Serration M8Hex. Flanged Nut With Serration M8
-
36A960001204017 Hex. Washer Face Bolt M12 x 40Hex. Washer Face Bolt M12 x 40
-
37A9405012000 Hex. Flanged Nut With Serration M12Hex. Flanged Nut With Serration M12
-
38A11203145000 BushBush
-
39A11150145000 Crankcase Fix ShaftCrankcase Fix Shaft
